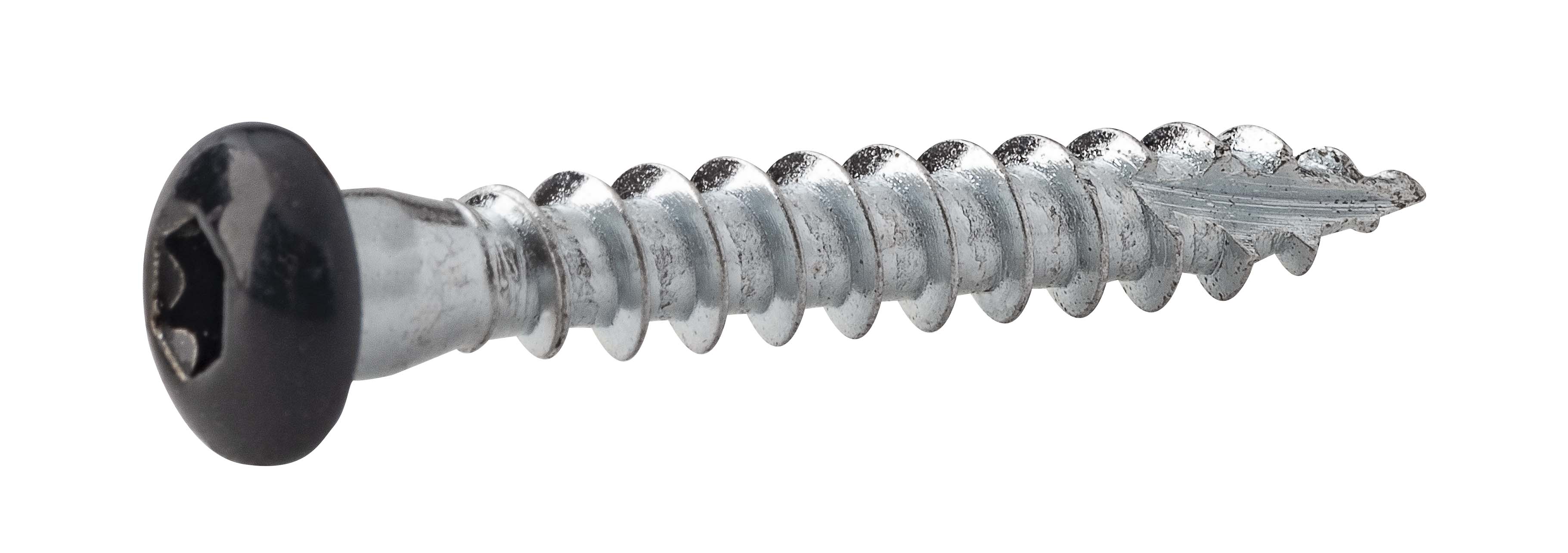

CSAPB
Black connector screws
CSAPB connector screw is developed for mounting of steel connectors to timber.
The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.
CE-merkitty
Tekninen hyväksyntä
Electrogalvanized steel 12 µm
RAL 9005
Tekniset tiedot
Mitat
Product dimensions and capacities
| Tuotenro | Fastener dimensions [mm] | Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN] | Qty/box | ||||||
|---|---|---|---|---|---|---|---|---|---|

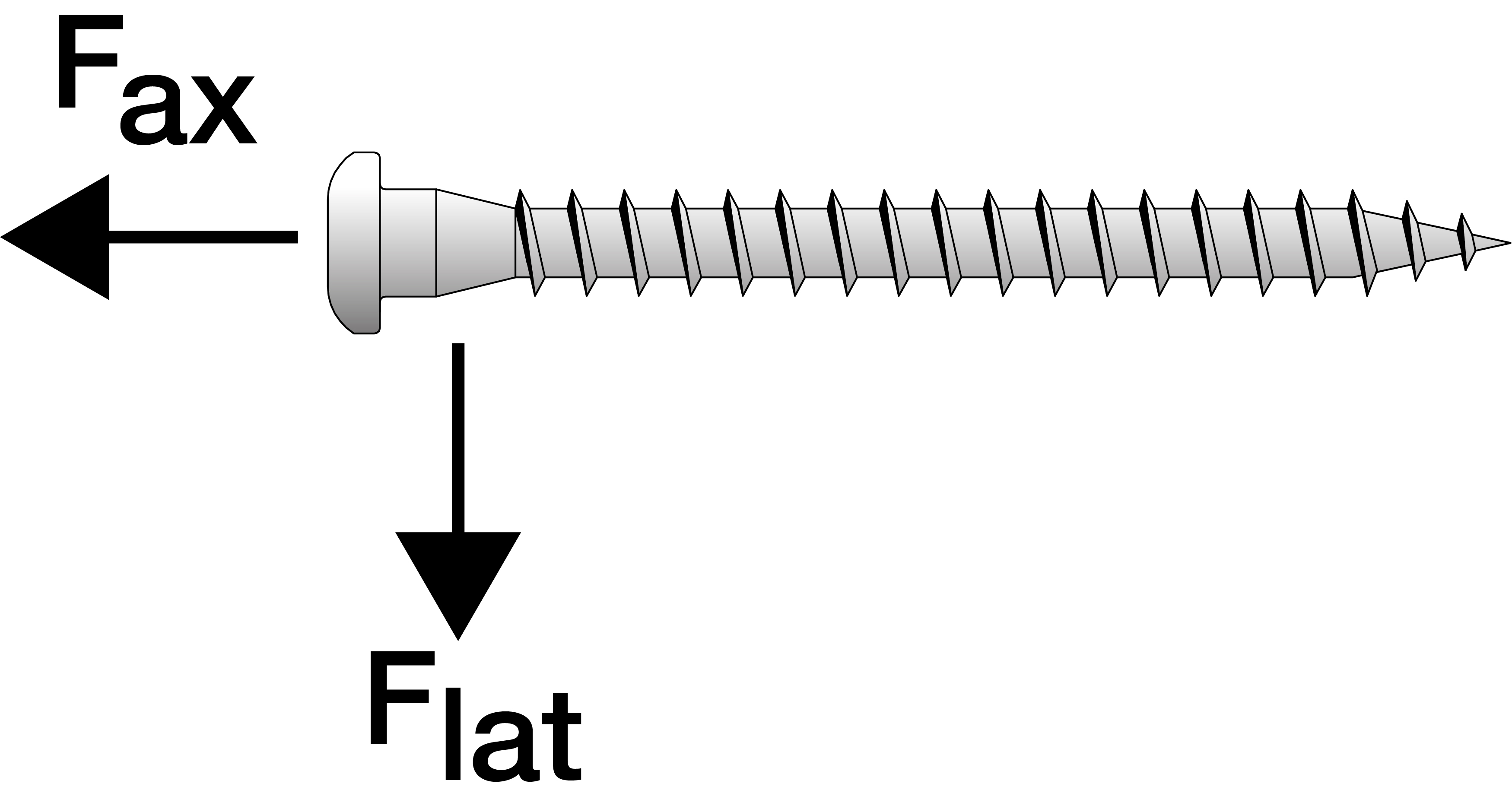

| d | l | dh | d1 | lg | Bit | Rlat.k | Rax.k | ||
| CSA5.0X35PB-BL | 4.9 | 35 | 8.3 | 3.2 | 29 | T-20 | 2 | 2.1 | 100 |
| CSA5.0x35PB-BL OBSO | 4.9 | 35 | 8.3 | 3.2 | 29 | T-20 | 2 | 2.1 | 100 |
| CSA5.0X35PB | 4.9 | 35 | 8.3 | 3.2 | 29 | T-20 | 2 | 2.1 | 100 |
