Puuruuvi - Sopiva lattialastulevyjen asennukseen

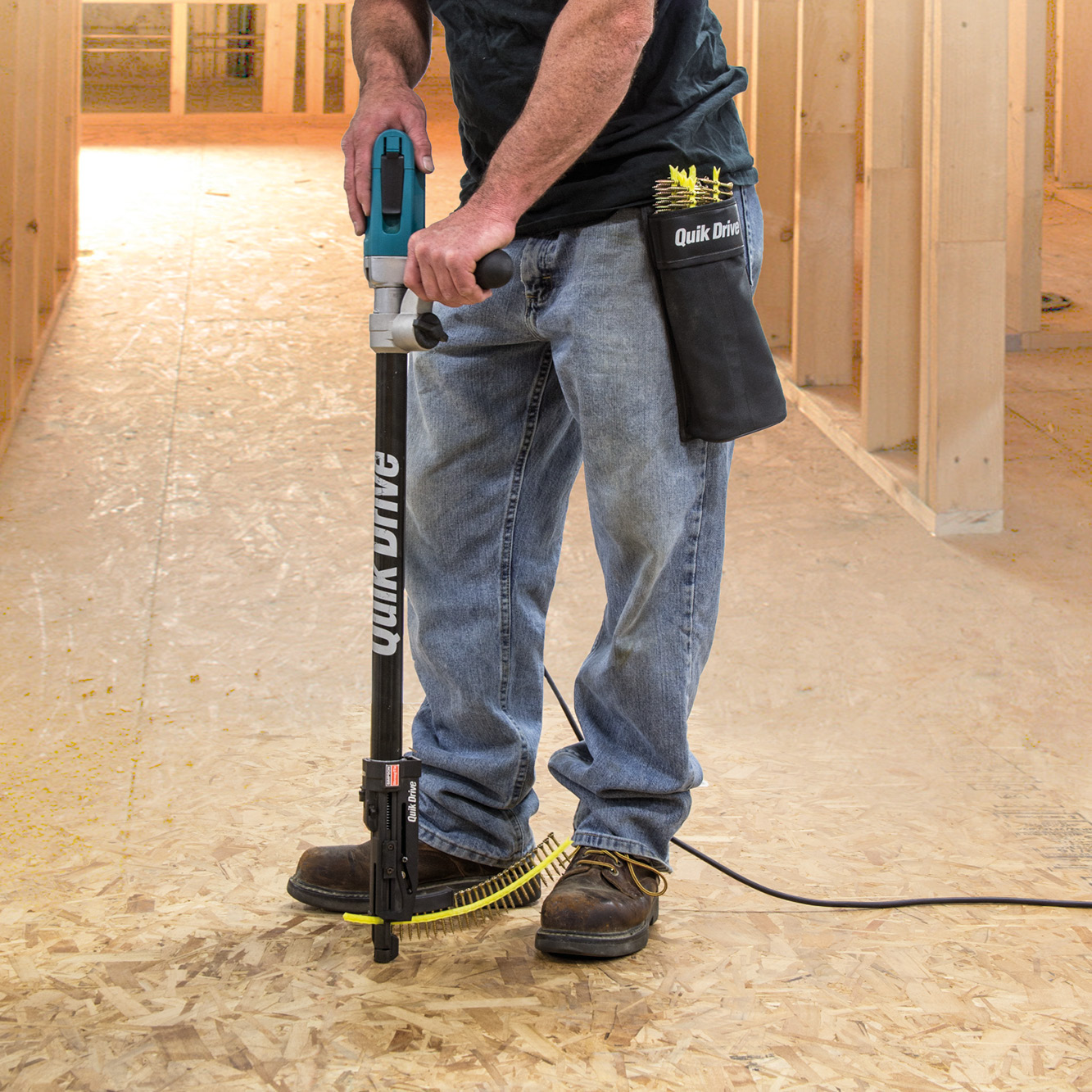

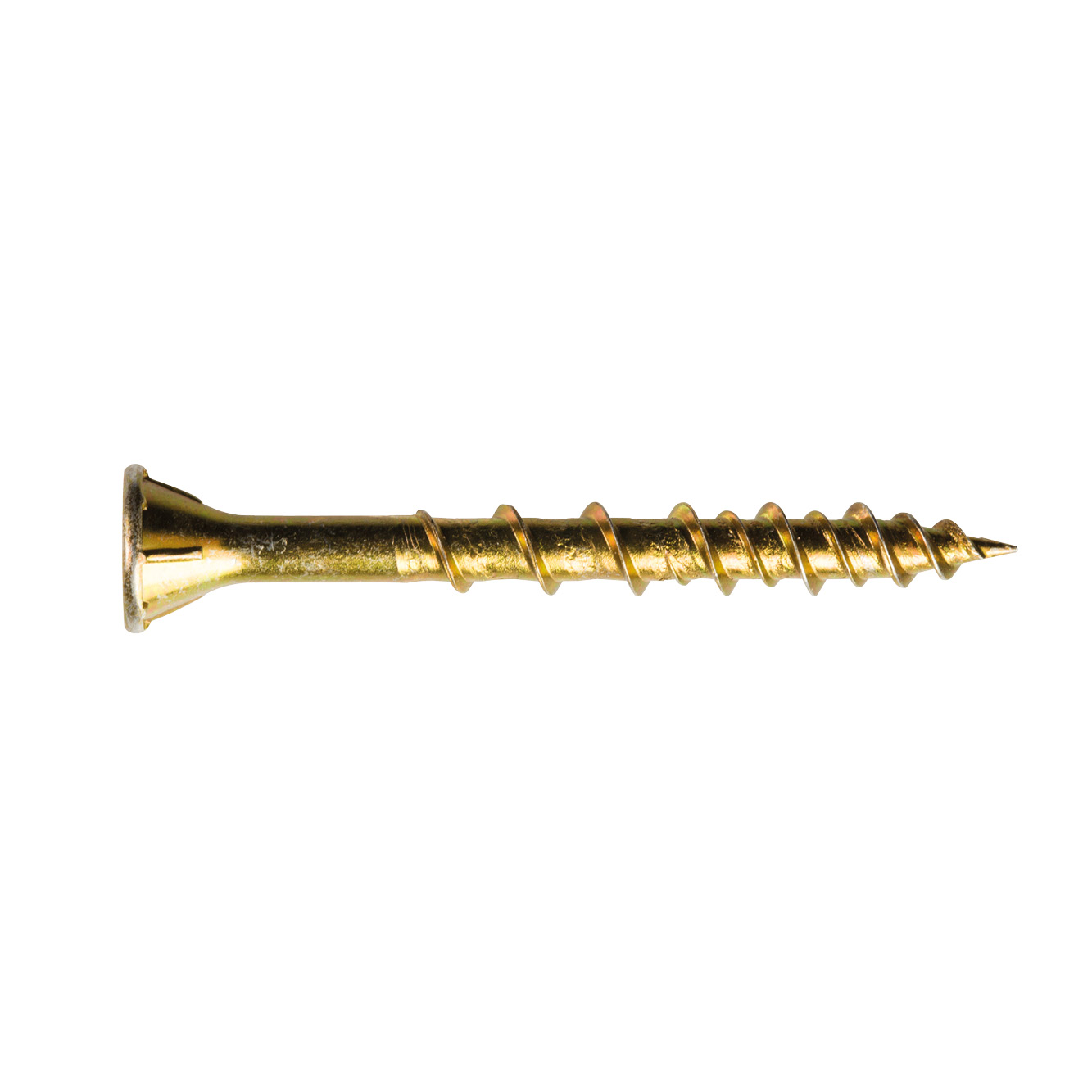

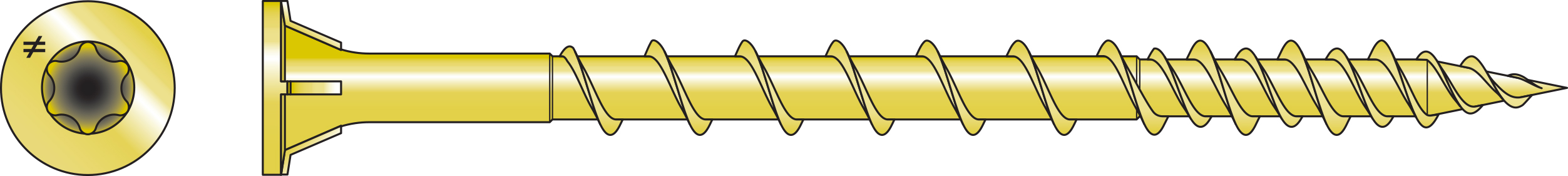

Puuruuvi senkkaavalla uppokannalla.



WSNTL-ruuveissa on kaksoiskierre. Ruuvit on kehitetty puulattian asentamiseksi puualustaan. Senkkaava uppokanta jyrsinrivoilla ehkäisee puun vaurioitumista. Sopii vain sisäkäyttöön.

CE-merkitty
Käyttöluokka 2
Yellow electro-galvanized steel
Indoor

Tuotteen yksityiskohdat

Ominaisuudet

Materiaali

  • Keltapassivoitu

Hyödyt

  • Senkkaava kanta jyrsinurilla nopeaan senkkaukseen
  • Terävä kärki ruuvin nopeaan uppoamiseen puuhun ilman esiporausta
  • Osittainen kierre erityisesti puun asentamiseksi puuhun
  • CE-merkitty EN14592:n mukaan
  • Kaksoiskierre 30 % nopeampaan ruuvaamiseen = SUURI AJANSÄÄSTÖ

Sovellus

Liitos

  • Massiivipuu, komposiitti, liimapuu
  • Puu

Käyttötarkoitus

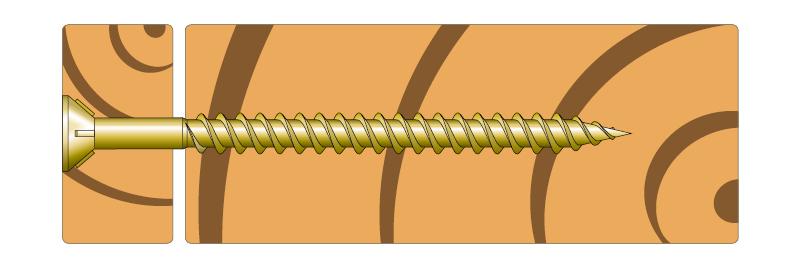

  • Puu puuhun
  • Sopiva lattialastulevyjen asennukseen

Tekniset tiedot

Mitat

Dimensions

Tuotenro DB nr. NOBB nr. Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment

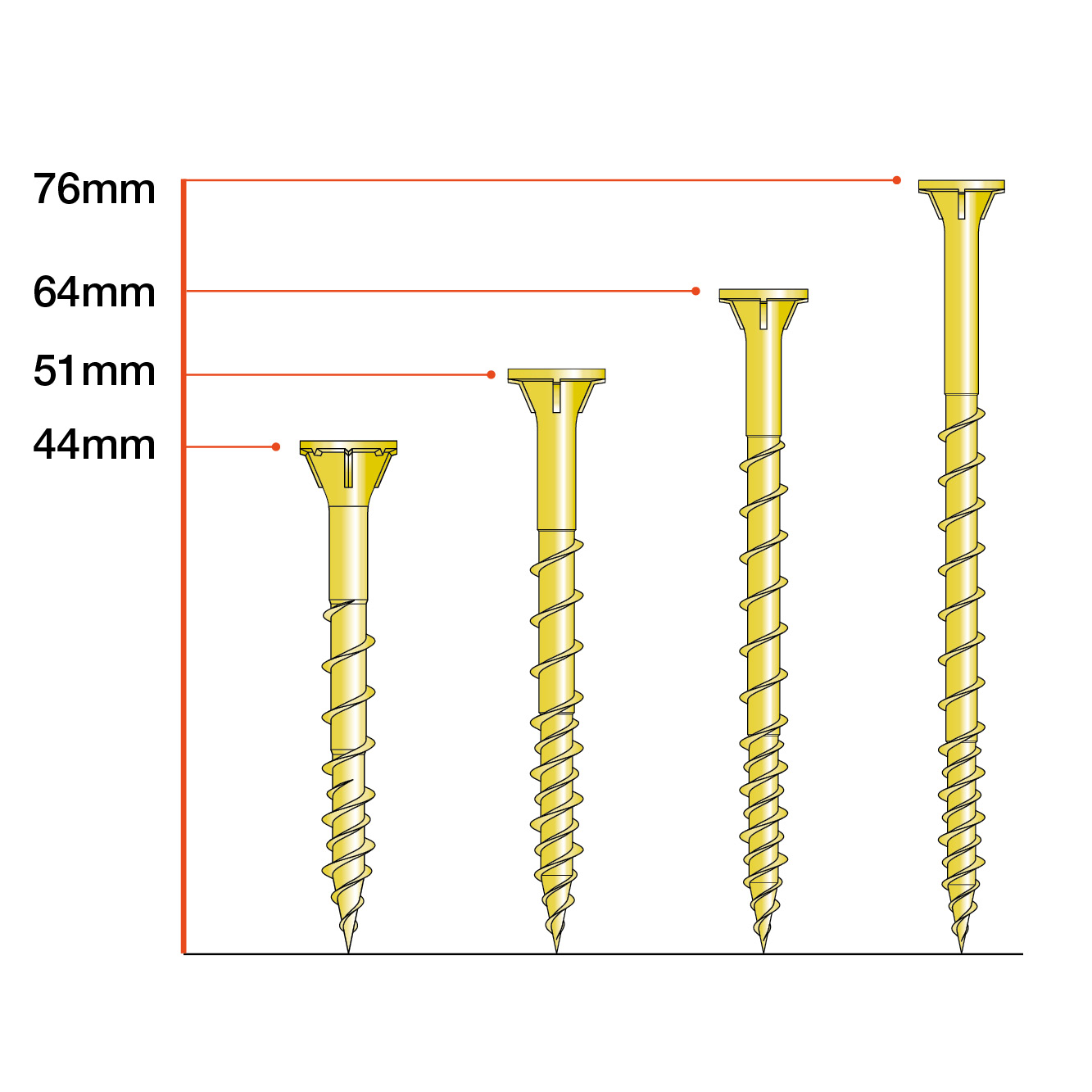

l d dh lg
WSV44E213543357302193444.68.5313020002500-4500QDPRO64E / QDPRO76SKE
WSV51E213543757302204518.5373020002500-4500QDPRO64E / QDPRO76SKE
WSV64E213543957302212648.5503015002500QDPRO64E / QDPRO76SKE
WSV76E2135440-768.5553010002500QDPRO76SKE / QD76KE

Structural parameters - EN14592

Tuotenro Characteristic Yield Moment – My,k [Nm] Characteristic withdrawal parameter - fax,k,90° [N/mm²] Characteristic head pull-through parameter - fhead,k [N/mm²] Characteristic tensile capacity - ftens,k [kN] Characteristic torsional strength - ftor,k [Nm] Torsonial ratio
WSV44E3.514.731.38.25.9≥ 1,5
WSV51E3.514.731.38.25.9≥ 1,5
WSV64E3.514.731.38.25.9≥ 1,5
WSV76E3.514.731.38.25.9≥ 1,5

Panel to Timber Characteristic Capacities

Tuotenro Panel (OSB, Fibreboard ρk≥380 kg/m3) on Timber C24 depending on panel thickness tp
13 [mm] 15 [mm] 18 [mm] 22 [mm] 25 [mm]
Rax.k.13 [kN] Rv.0.k.13 [kN] Rv.90.k.13 [kN] Rax.k.15 [kN] Rv.0.k.15 [kN] Rv.90.k.15 [kN] Rax.k.18 [kN] Rv.0.k.18 [kN] Rv.90.k.18 [kN] Rax.k.22 [kN] Rv.0.k.22 [kN] Rv.90.k.22 [kN] Rax.k.25 [kN] Rv.0.k.25 [kN] Rv.90.k.25 [kN]
WSV44E2.031.271.27-0.830.83-0.930.93-0.930.93-0.850.85
WSV51E2.421.371.372.421.431.432.231.491.49-11-1.011.01
WSV64E2.421.371.372.421.431.432.421.531.532.421.611.61-1.011.01
WSV76E2.421.371.372.421.431.432.421.531.532.421.611.612.421.611.61

Plywood to Timber Characteristic Capacities

Tuotenro Plywood (ρk≥490 kg/m3) on Timber C24 depending on panel thickness tp
10 [mm] 15 [mm] 18 [mm] 22 [mm] 25 [mm] 30 [mm]
Rax.k.10 [kN] Rv.0.k.10 [kN] Rv.90.k.10 [kN] Rax.k.15 [kN] Rv.0.k.15 [kN] Rv.90.k.15 [kN] Rax.k.18 [kN] Rv.0.k.18 [kN] Rv.90.k.18 [kN] Rax.k.22 [kN] Rv.0.k.22 [kN] Rv.90.k.22 [kN] Rax.k.25 [kN] Rv.0.k.25 [kN] Rv.90.k.25 [kN] Rax.k.30 [kN] Rv.0.k.30 [kN] Rv.90.k.30 [kN]
WSV44E2.031.221.22-0.840.84-0.940.94-0.930.93-0.850.85---
WSV51E2.51.271.27-0.840.84-0.940.94-11-11-0.90.9
WSV64E2.961.271.272.961.581.582.961.681.68-11-11-11
WSV76E2.961.271.272.961.581.582.961.681.682.961.741.742.961.741.742.961.741.74
