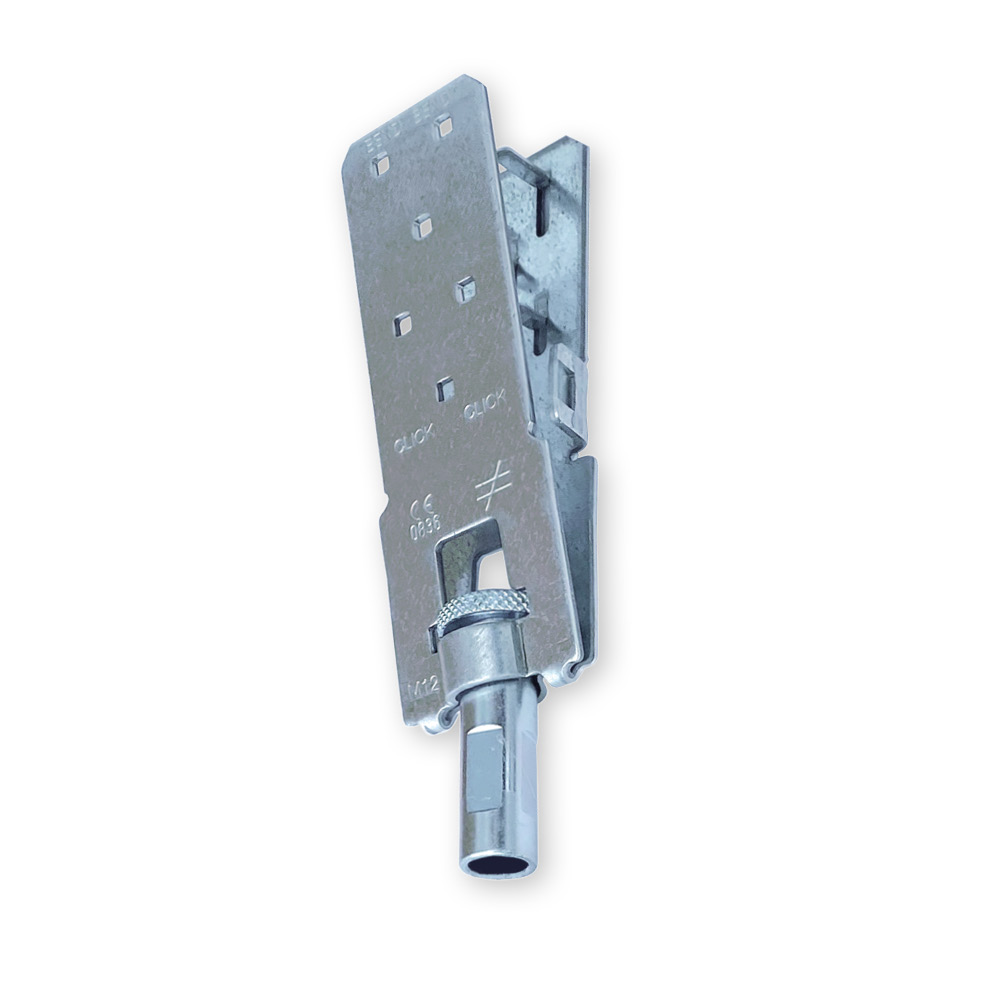

Teräslaatu:
Kuumasinkitty teräs S250GD + Z275 EN 10346 mukaan
Korroosiosuoja:
275 g/m² molemmin puolin - vastaa noin 20 μm:n sinkkikerrosta
Hyödyt
Easy installation
No bolts and nuts
Timesaving compared to other tie downs
Can be used with 25, 40 and 60 mm straps
Easy to understand
Sovellus
Käyttötarkoitus

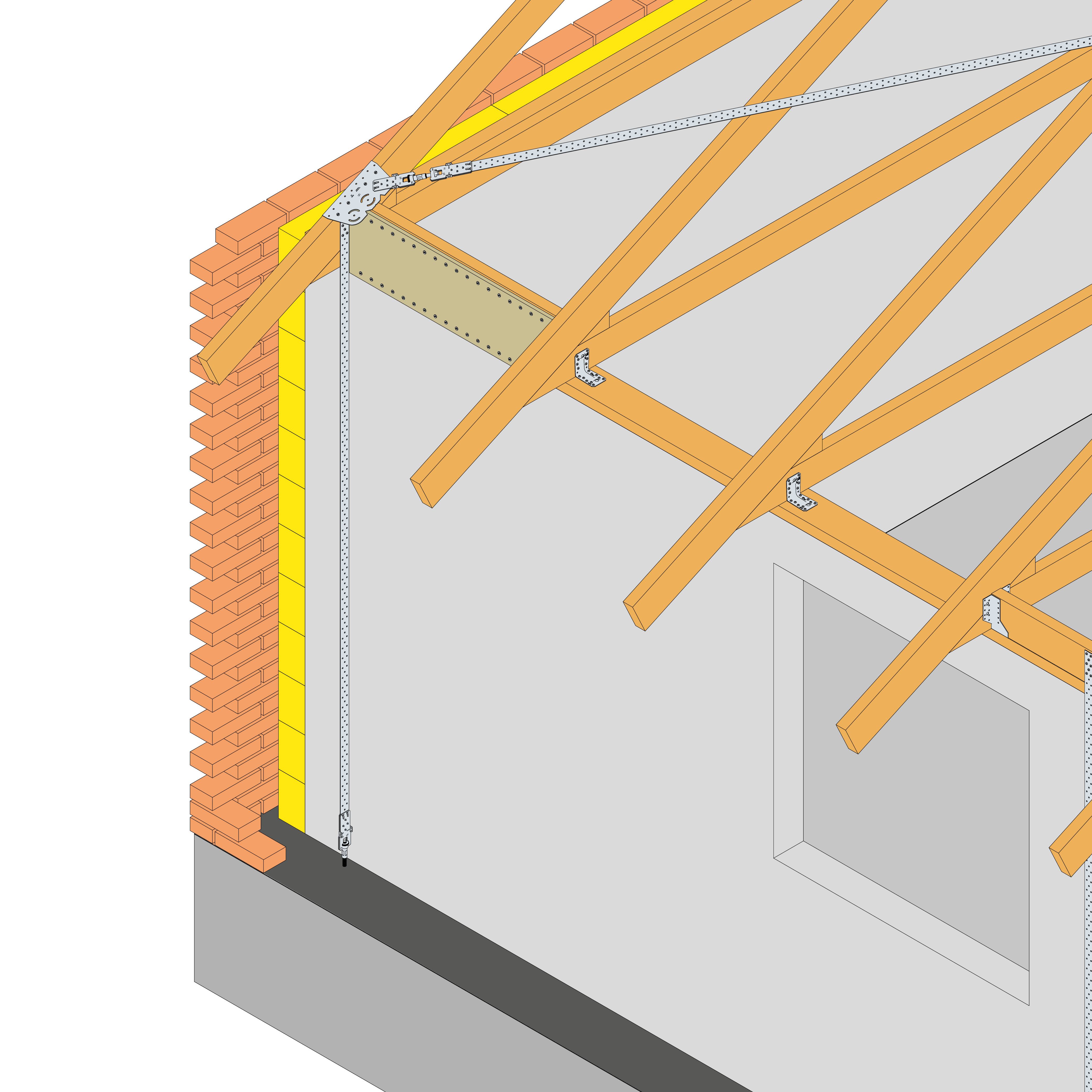

For stabilizing and anchoring roof constructions and buildings
Tekniset tiedot
Mitat
Product dimensions
Tuotenro
Product dimensions [mm]
Box Quantity
A
B
t
BPTD
51
180
2.5
10
Product capacities
Tuotenro
Product capacities
Threaded rod
Characteristic capacities [kN]
R1.k
BPTD
M12
27.5
The values are whith all 6 pins in use and 2 bended
Asennus
Asennus
Kiinnittäminen
The BPTD must be fastened at least 10 mm onto the threaded rod

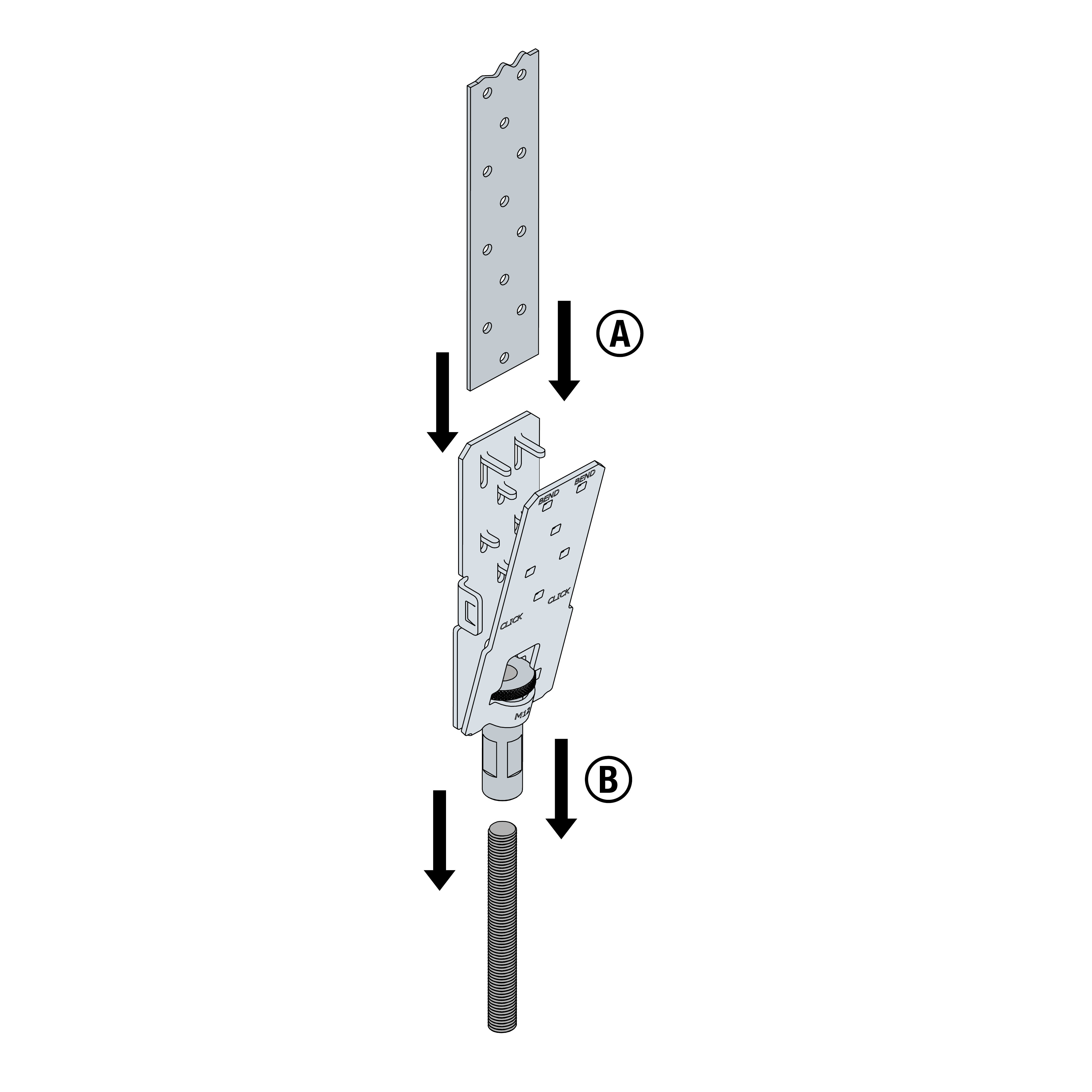

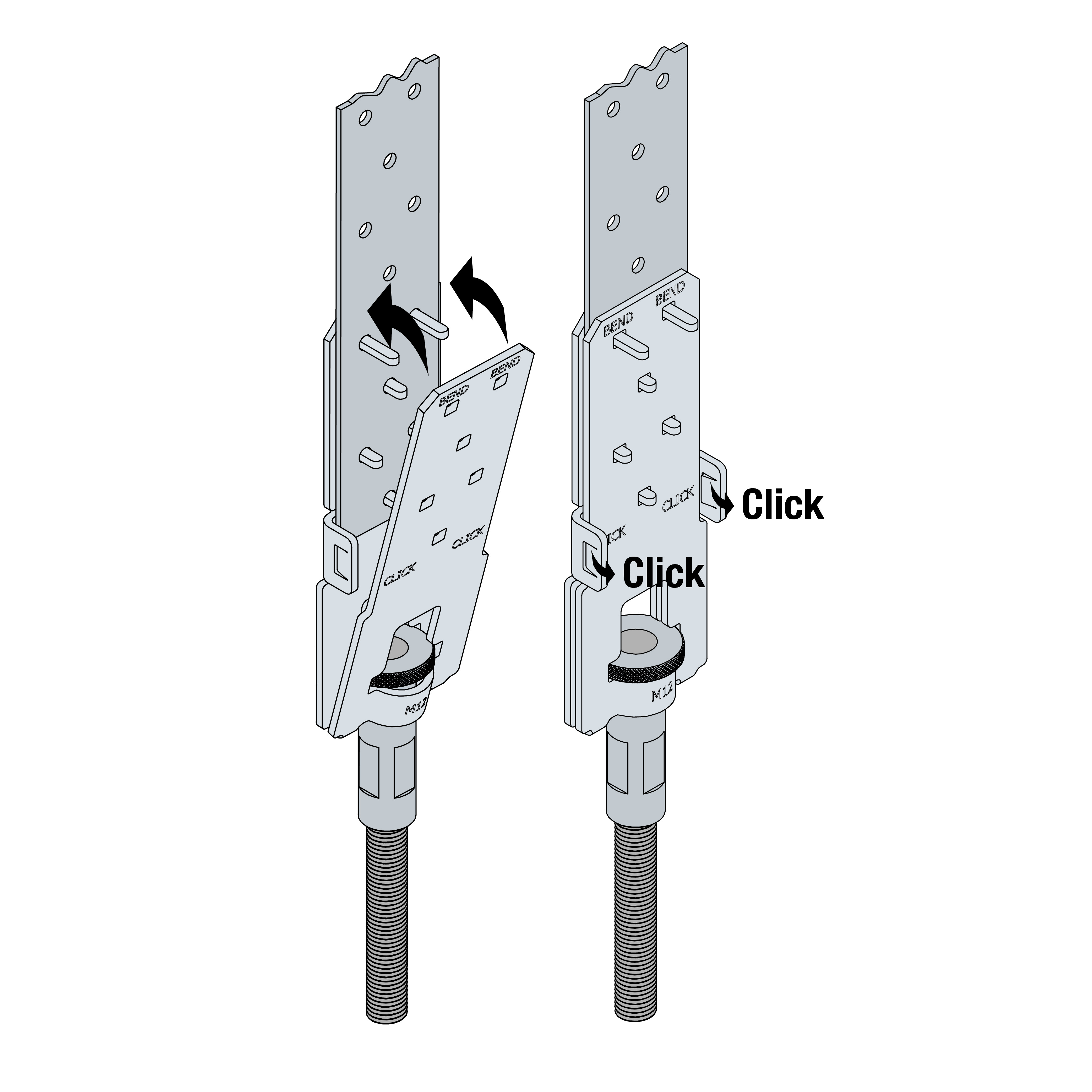

Connect the windbracing strap to the BPTD and click the connector shut

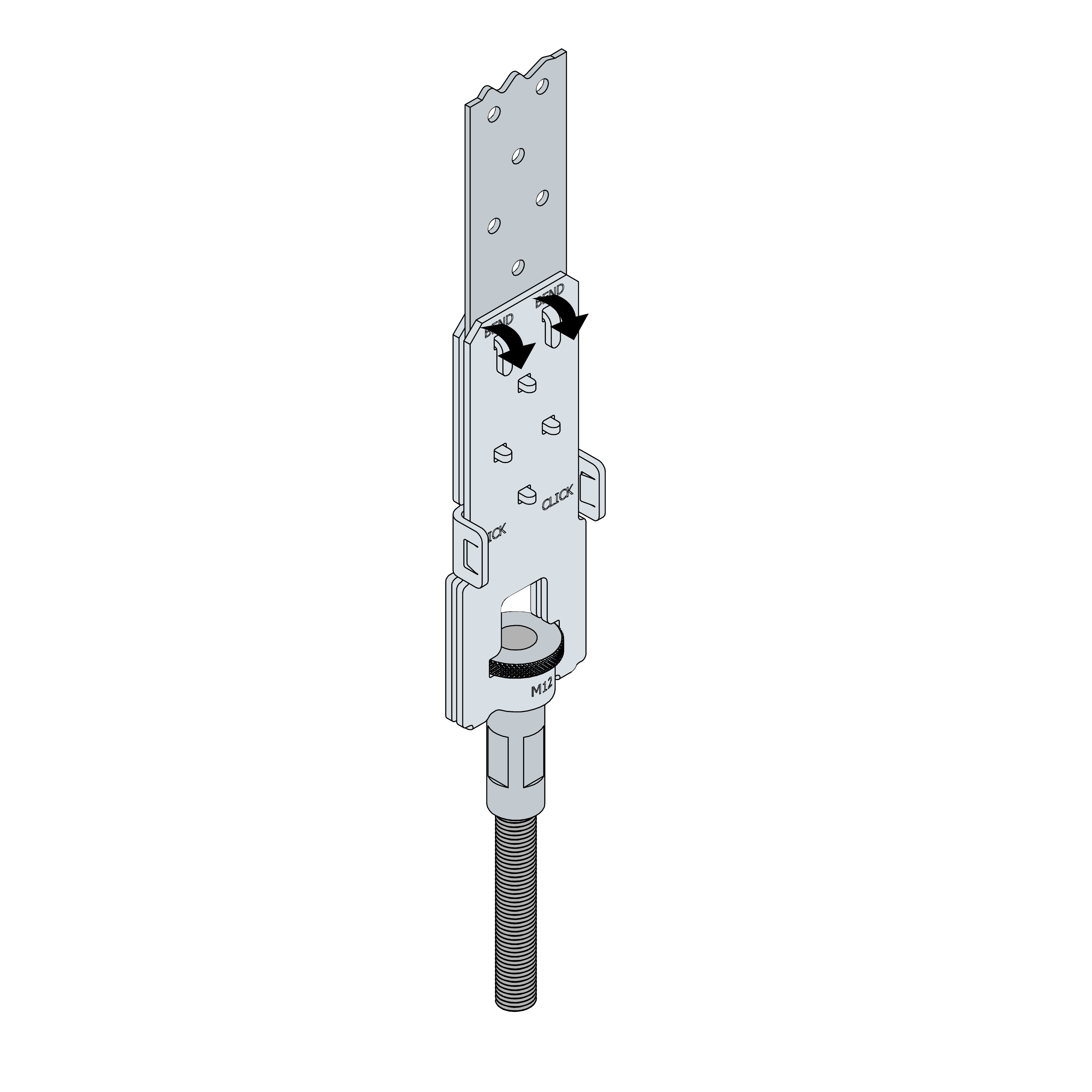

Bend the 2 longest pins

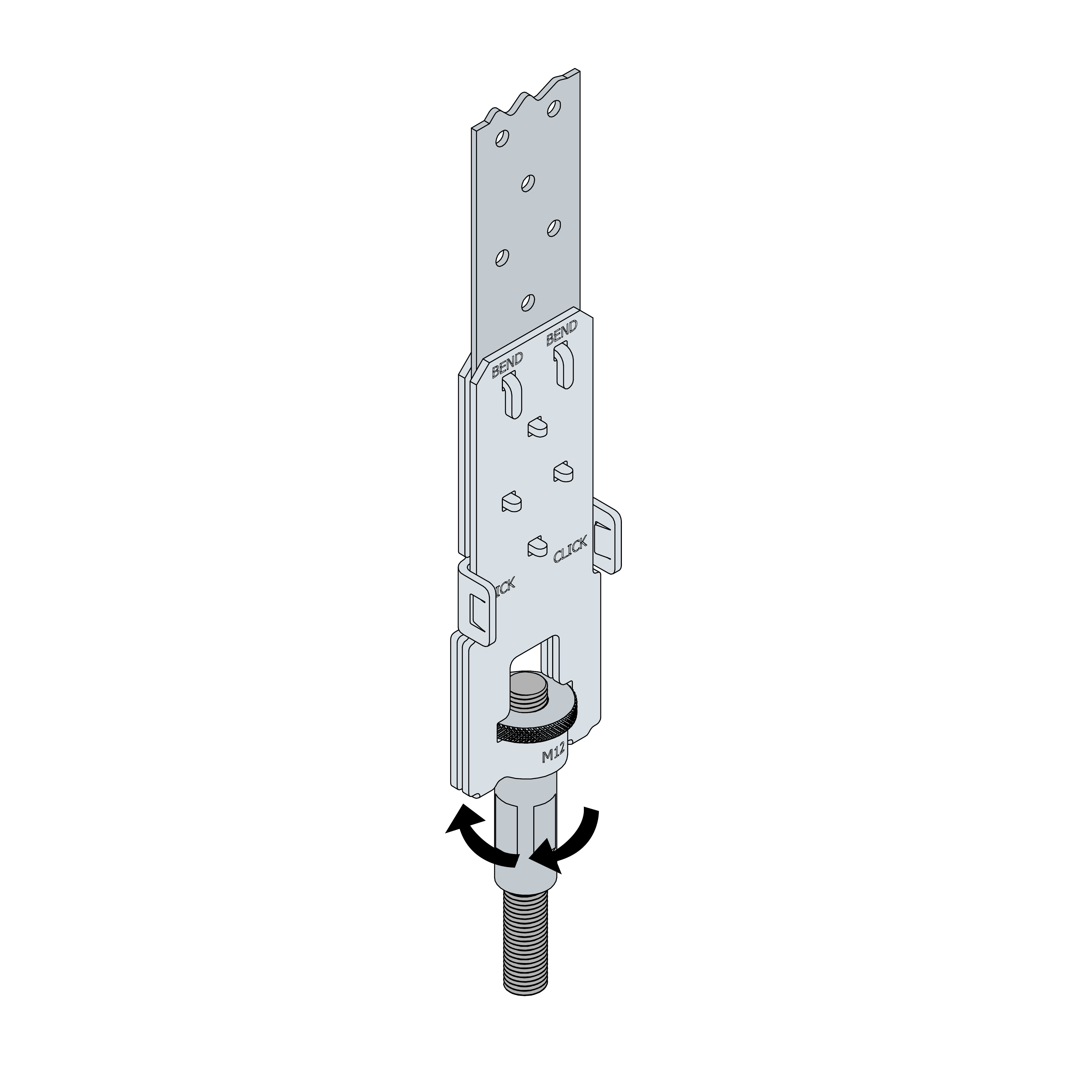

Screw the BPTD further onto the threaded rod to tighten the tension strap.

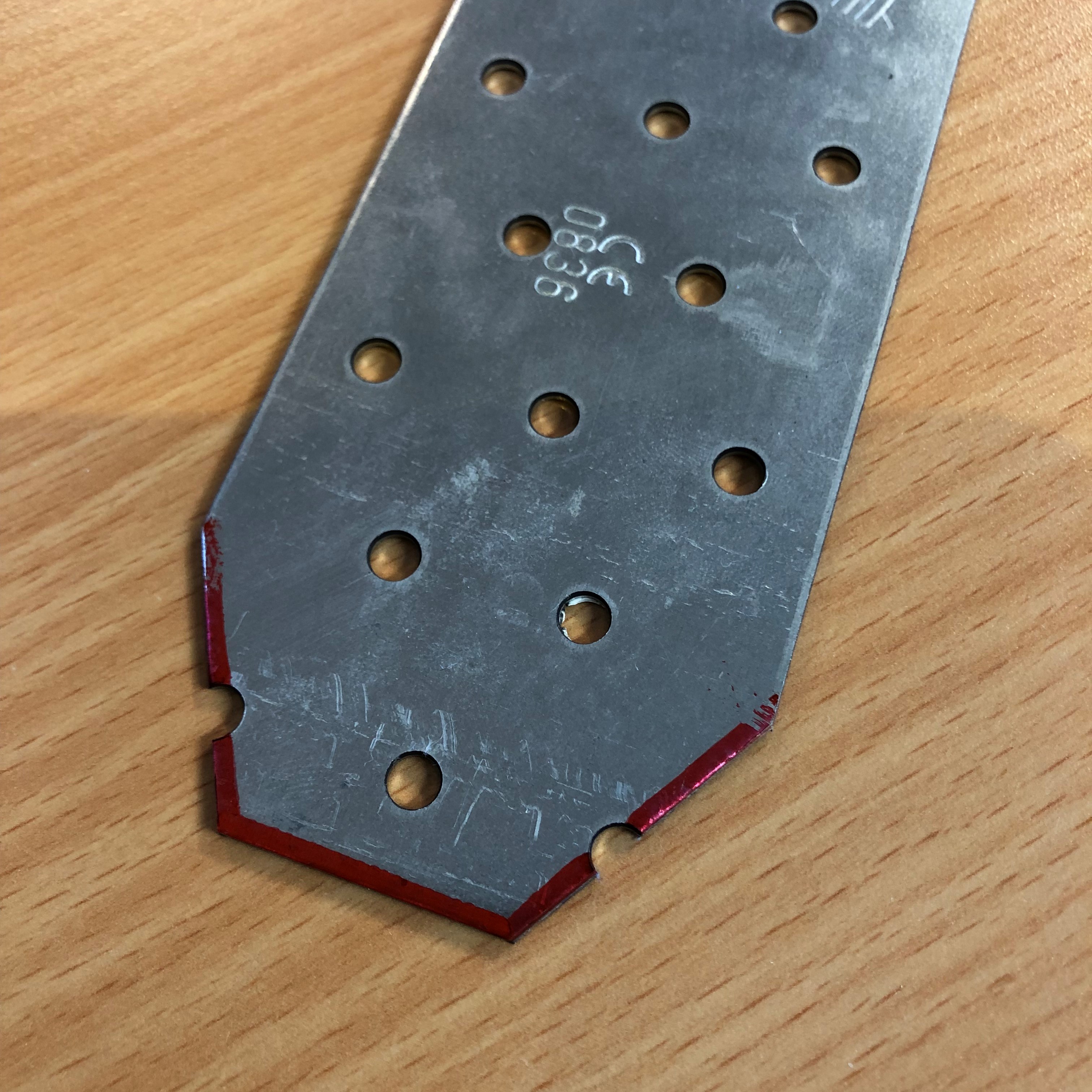

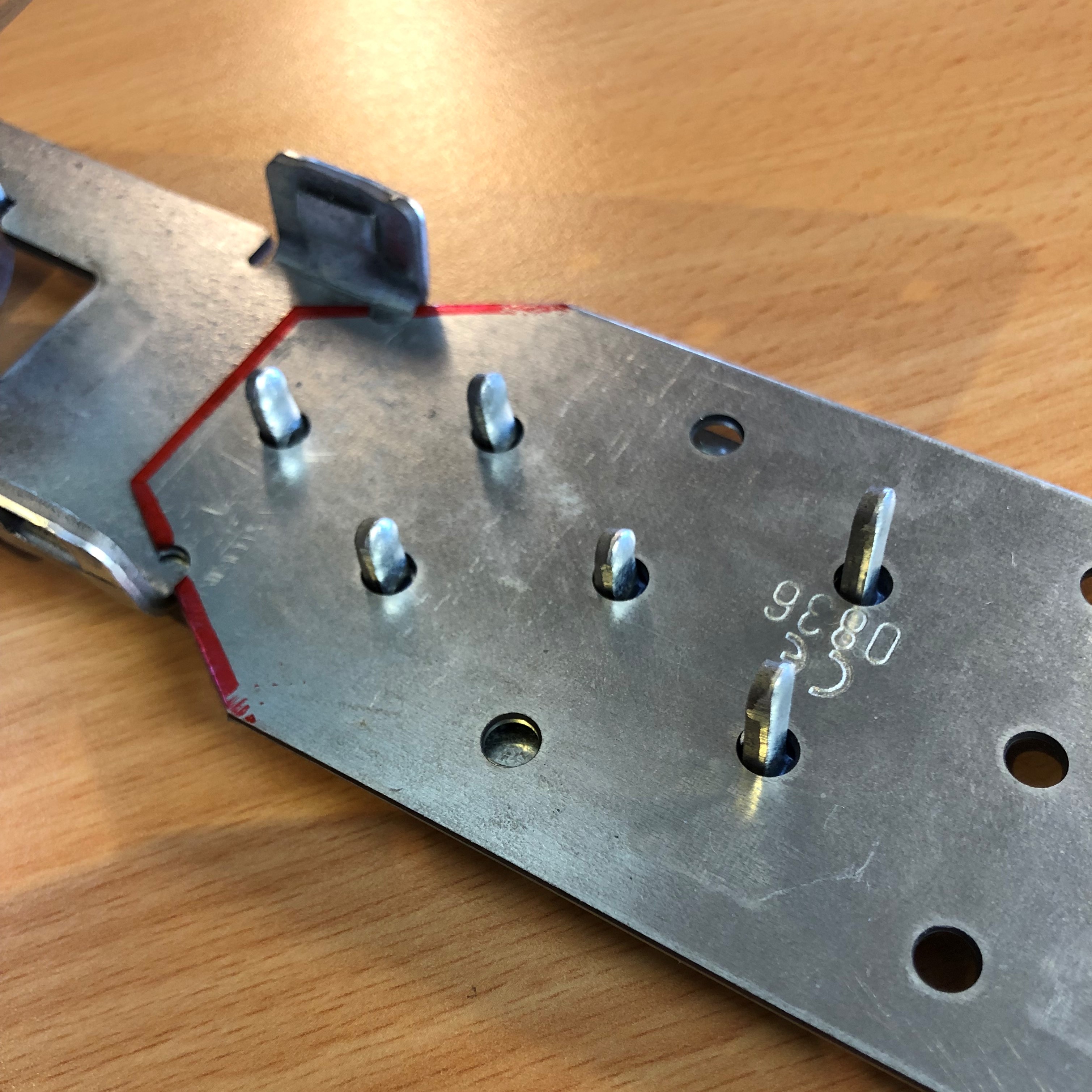

IMPORTANT - by installation of 60 mm straps, the corners of the strap has to be trimmed so that all 6 pins in the tightener can be used, see installation pics below.
Simpson Strong-Tie provides products and technology that help people design and build safer, stronger structures.
As a pioneer in the building industry and a world leader in structural solutions, we have an unmatched passion for problem solving through skilful engineering and thoughtful innovation. Our dedication to pursuing ever-better construction products and technology and to surrounding our customers with exceptional service and support has been core to our mission since 1956.
