NP

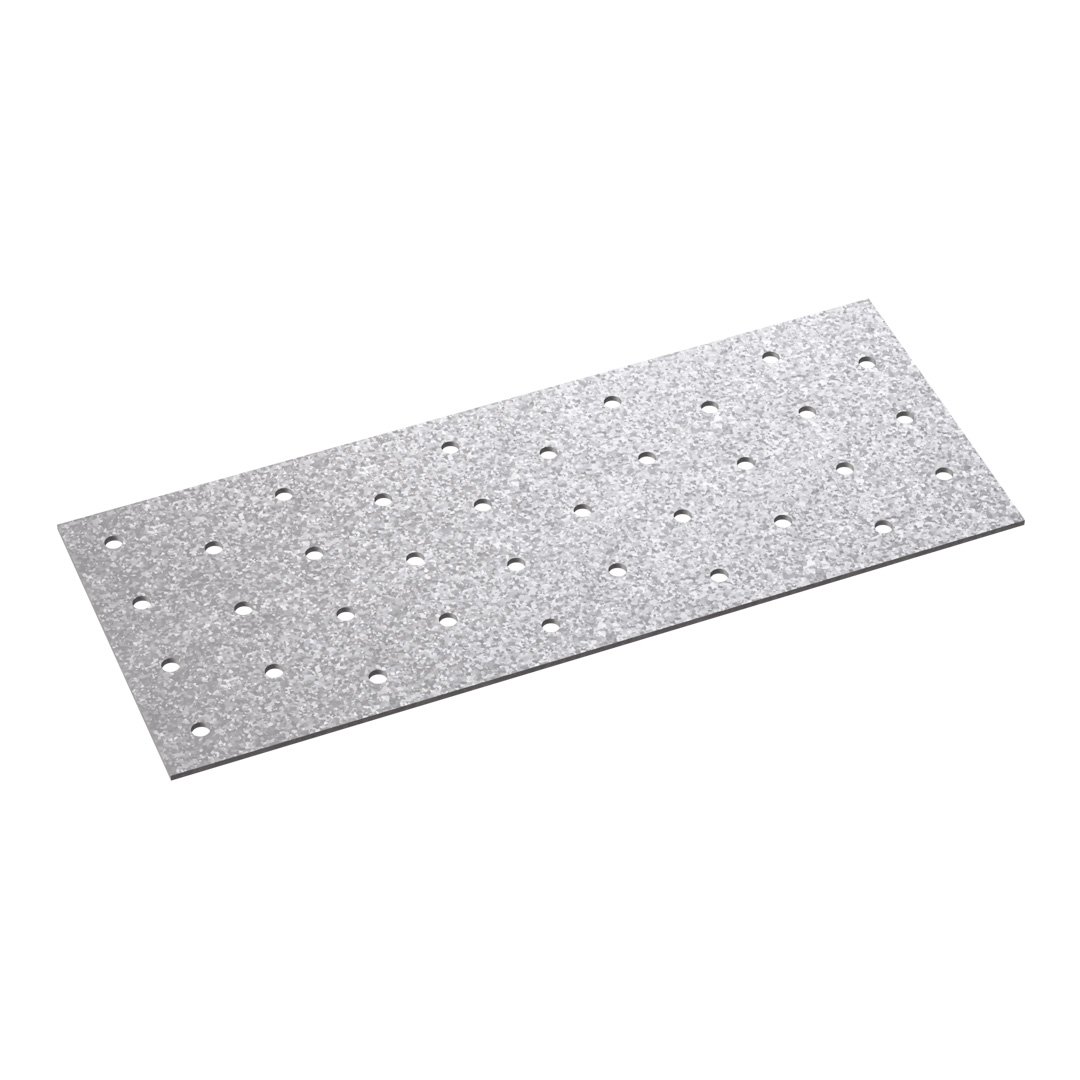

Naulauslevy

NP-naulauslevyjä voidaan käyttää yhdistämään monenlaisia puurakenteita monipuolisesti. Niitä on saatavana erilaisina kokoja paksuusvaihtoehtoina. On suositeltavaa käyttää liitoksessa aina kahta reikälevyä. Liitettävillä puuosilla tulee olla sama leveys.



Kattoristikoiden rakentamisesta naulauslevyillä ja naulauslevynauloilla on lisätietoja erillisessä ohjeessa. NP-naulauslevyjä on saatavana myös haponkestävästä ruostumattomasta teräksestä valmistettuina.

Tekniset tiedot
CE-merkitty
Käyttöluokka 2
Electrogalvanized steel 20 µm
Indoor

Tuotteen yksityiskohdat

Kuvat

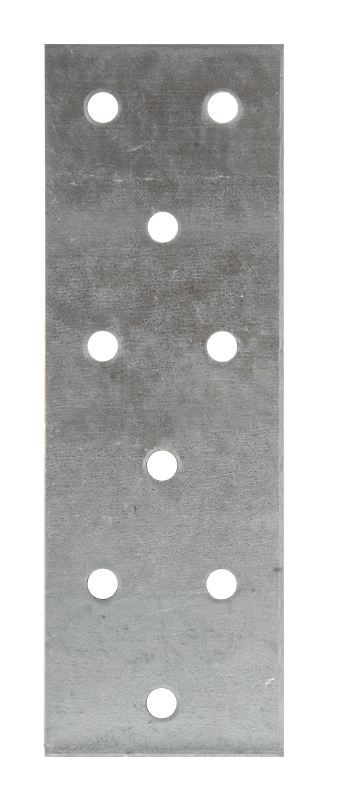

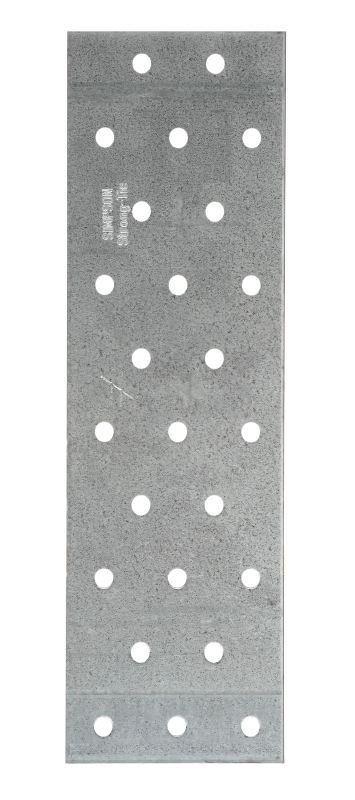

NP hulplade 1.jpg

Ominaisuudet

Materiaali

  • Teräslaatu:
    Kuumasinkitty teräs S250GD + Z275 EN 10346 mukaan
  • Korroosiosuoja:
    275 g/m² molemmin puolin - vastaa noin 20 μm:n sinkkikerrosta
  • Paksuus: 1,5 ja 2 mm

Tekniset tiedot

Mitat


Mitat ja ominaisarvot

Tuotenro Mitat [mm] Reiät Kestävyyden ominaisarvot [kN] Box Quantity

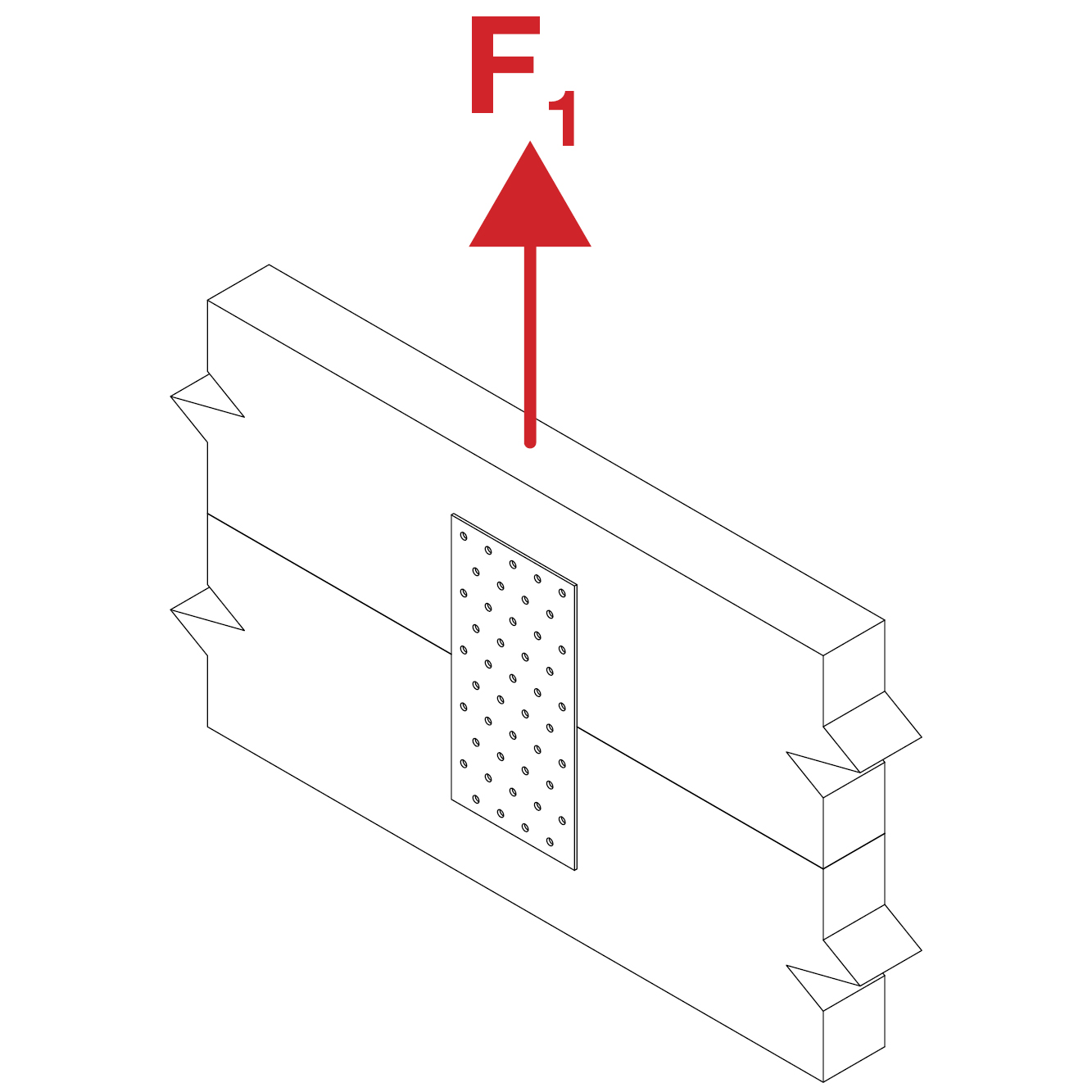

A B Paksuus Määrä Halkaisija R1.k
NP15/40/120401201.59Ø5min (n x Rlat,k ; 13.4/kmod)100
NP15/40/160401601.512Ø5min (n x Rlat,k ; 13.4/kmod)50
NP15/40/360403601.527Ø5min (n x Rlat,k ; 13.4/kmod)100
NP15/50/200502001.520Ø5min (n x Rlat,k ; 17.8/kmod)50
NP15/60/140601401.518Ø5min (n x Rlat,k ; 20/kmod)100
NP15/60/160601601.520Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/180601801.523Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/200602001.525Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/220602201.528Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/240602401.530Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/300603001.538Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/340603401.543Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/420604201.553Ø5min (n x Rlat,k ; 20/kmod)50
NP15/60/500605001.563Ø5min (n x Rlat,k ; 20/kmod)50
NP15/80/100801001.518Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/140801401.525Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/180801801.532Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/200802001.535Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/220802201.539Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/240802401.542Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/260802601.546Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/280802801.549Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/300803001.553Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/340803401.560Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/380803801.567Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/420804201.574Ø5min (n x Rlat,k ; 26.7/kmod)50
NP15/80/500805001.588Ø5min (n x Rlat,k ; 26.7/kmod)40
NP15/100/1401001401.532Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/1801001801.541Ø5min (n x Rlat,k ; 33.4/kmod)-
NP15/100/2001002001.545Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/2201002201.550Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/2401002401.554Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/3001003001.568Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/3401003401.577Ø5min (n x Rlat,k ; 33.4/kmod)50
NP15/100/3801003801.586Ø5min (n x Rlat,k ; 40.1/kmod)25
NP15/120/1601201601.544Ø5min (n x Rlat,k ; 40.1/kmod)50
NP15/120/2201202201.561Ø5min (n x Rlat,k ; 40.1/kmod)50
NP15/120/2401202401.566Ø5min (n x Rlat,k ; 40.1/kmod)50
NP15/120/2601202601.572Ø5min (n x Rlat,k ; 40.1/kmod)50
NP15/120/3001203001.583Ø5min (n x Rlat,k ; 40.1/kmod)25
NP15/120/3401203401.594Ø5min (n x Rlat,k ; 40.1/kmod)25
NP15/120/3801203801.5105Ø5min (n x Rlat,k ; 40.1/kmod)25
NP15/140/1401401401.546Ø5min (n x Rlat,k ; 46.8/kmod)-
NP15/140/1801401801.559Ø5min (n x Rlat,k ; 46.8/kmod)50
NP15/140/2001402001.565Ø5min (n x Rlat,k ; 46.8/kmod)50
NP15/140/2201402201.572Ø5min (n x Rlat,k ; 46.8/kmod)-
NP15/140/2401402401.578Ø5min (n x Rlat,k ; 46.8/kmod)50
NP15/140/2601402601.585Ø5min (n x Rlat,k ; 46.8/kmod)50
NP15/140/3001403001.598Ø5min (n x Rlat,k ; 46.8/kmod)25
NP15/140/3801403801.5124Ø5min (n x Rlat,k ; 46.8/kmod)25
NP15/140/4201404201.5137Ø5min (n x Rlat,k ; 46.8/kmod)25
NP15/160/1801601801.568Ø5min (n x Rlat,k ; 53.5/kmod)50
NP15/160/2201602201.583Ø5min (n x Rlat,k ; 53.5/kmod)50
NP15/160/2401602401.590Ø5min (n x Rlat,k ; 53.5/kmod)25
NP15/160/2601602601.598Ø5min (n x Rlat,k ; 53.5/kmod)25
NP15/160/3401603401.5128Ø5min (n x Rlat,k ; 53.5/kmod)25
NP15/160/3801603801.5143Ø5min (n x Rlat,k ; 53.5/kmod)25
NP15/160/4001604001.5150Ø5min (n x Rlat,k ; 53.5/kmod)20
NP15/160/4201604201.5158Ø5min (n x Rlat,k ; 53.5/kmod)25
NP15/180/1801801801.577Ø5min (n x Rlat,k ; 60.1/kmod)50
NP15/180/2201802201.594Ø5min (n x Rlat,k ; 60.1/kmod)25
NP15/200/2202002201.5105Ø5min (n x Rlat,k ; 66.8/kmod)25
NP15/200/2602002601.5124Ø5min (n x Rlat,k ; 66.8/kmod)25
NP15/220/2202202201.5116Ø5min (n x Rlat,k ; 73.5/kmod)25
NP15/220/2602202601.5137Ø5min (n x Rlat,k ; 73.5/kmod)25
NP15/220/3002203001.5158Ø5min (n x Rlat,k ; 73.5/kmod)25
NP15/240/1802401801.5104Ø5min (n x Rlat,k ; 80.2/kmod)-
NP15/240/2202402201.5127Ø5min (n x Rlat,k ; 80.2/kmod)25
NP15/240/2602402601.5150Ø5min (n x Rlat,k ; 80.2/kmod)-
NP15/240/3002403001.5173Ø5min (n x Rlat,k ; 80.2/kmod)20
NP15/260/2602602601.5163Ø5min (n x Rlat,k ; 86.9/kmod)20
NP15/280/2202802201.5149Ø5min (n x Rlat,k ; 93.6/kmod)25
NP15/280/2602802601.5173Ø5min (n x Rlat,k ; 93.6/kmod)20
NP15/280/3002803001.5203Ø5min (n x Rlat,k ; 93.6/kmod)20
NP15/320/1403201401.5109Ø5min (n x Rlat,k ; 106.9/kmod)25
NP20/40/1204012029Ø5min (n x Rlat,k ; 17.8/kmod)100
NP20/40/16040160212Ø5min (n x Rlat,k ; 17.8/kmod)50
NP20/50/20050200220Ø5min (n x Rlat,k ; 23.8/kmod)50
NP20/60/14060140218Ø5min (n x Rlat,k ; 26.7/kmod)50
NP20/60/20060200225Ø5min (n x Rlat,k ; 26.7/kmod)50
NP20/60/24060240230Ø5min (n x Rlat,k ; 26.7/kmod)50
NP20/80/20080200235Ø5min (n x Rlat,k ; 35.6/kmod)50
NP20/80/24080240242Ø5min (n x Rlat,k ; 35.6/kmod)50
NP20/80/30080300253Ø5min (n x Rlat,k ; 35.6/kmod)50
NP20/100/140100140232Ø5min (n x Rlat,k ; 44.6/kmod)50
NP20/100/200100200245Ø5min (n x Rlat,k ; 44.6/kmod)50
NP20/100/240100240254Ø5min (n x Rlat,k ; 44.6/kmod)50
NP20/100/260100260259Ø5min (n x Rlat,k ; 44.6/kmod)50
NP20/100/300100300268Ø5min (n x Rlat,k ; 44.6/kmod)25
NP20/100/400100400289Ø5min (n x Rlat,k ; 44.6/kmod)25
NP20/100/5001005002112Ø5min (n x Rlat,k ; 44.6/kmod)25
NP20/120/200120200255Ø5min (n x Rlat,k ; 53.5/kmod)50
NP20/120/240120240266Ø5min (n x Rlat,k ; 53.5/kmod)25
NP20/120/260120260272Ø5min (n x Rlat,k ; 53.5/kmod)25
NP20/120/300120300283Ø5min (n x Rlat,k ; 53.5/kmod)25
NP20/120/4001204002110Ø5min (n x Rlat,k ; 53.5/kmod)25
NP20/140/4001404002130Ø5min (n x Rlat,k ; 62.4/kmod)25
NP20/160/3001603002113Ø5min (n x Rlat,k ; 71.3/kmod)25
NP20/160/4001604002150Ø5min (n x Rlat,k ; 71.3/kmod)20
NP20/200/3002003002200Ø5min (n x Rlat,k ; 89.1/kmod)20
NP20/350/4035040234Ø5--

n = neff = liitoskiinnikkeiden tehollinen määrä Eurokoodi 5:n (8.3.1.1) mukaisesti
Rlat,k = liitoskiinnikkeen poikittaiskestävyyden ominaisarvo

Asennus

Asennus

Kiinnittäminen

  • Kiinnittämisessä käytetään CNA4,0xl-naulauslevynauloja tai CSA5,0xl-ruuveja
NP hulplade 1.jpg

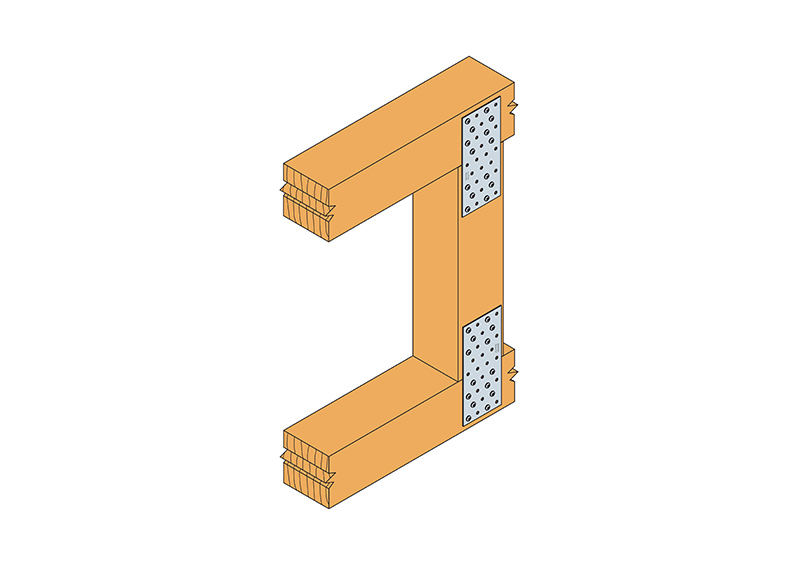

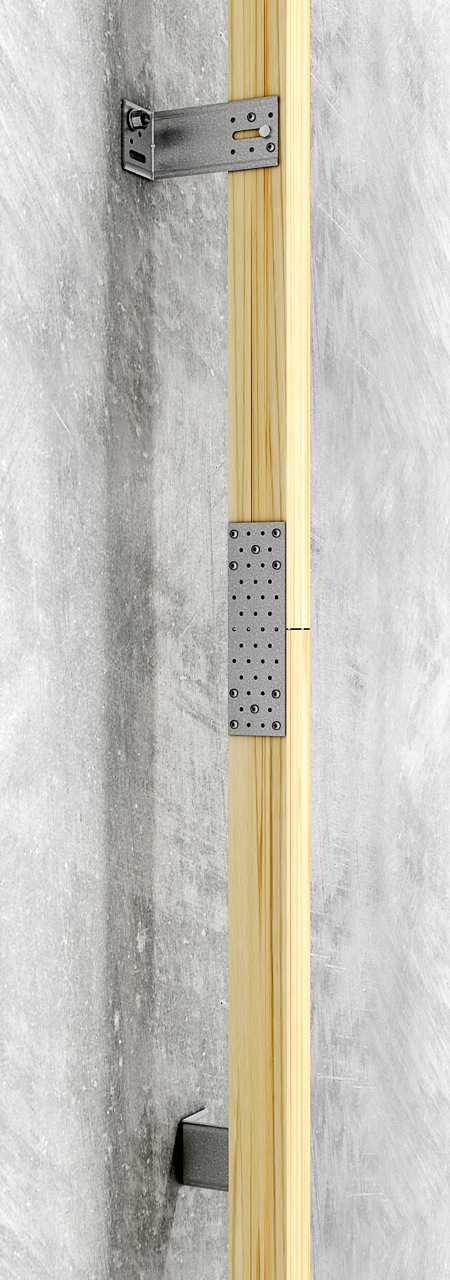

Liitos NP-naulauslevyllä

Sertifiointi

Suorituskykyvakuutus (DoP)

uk-dop-h10-0005-06.pdf (97.04 KB)
