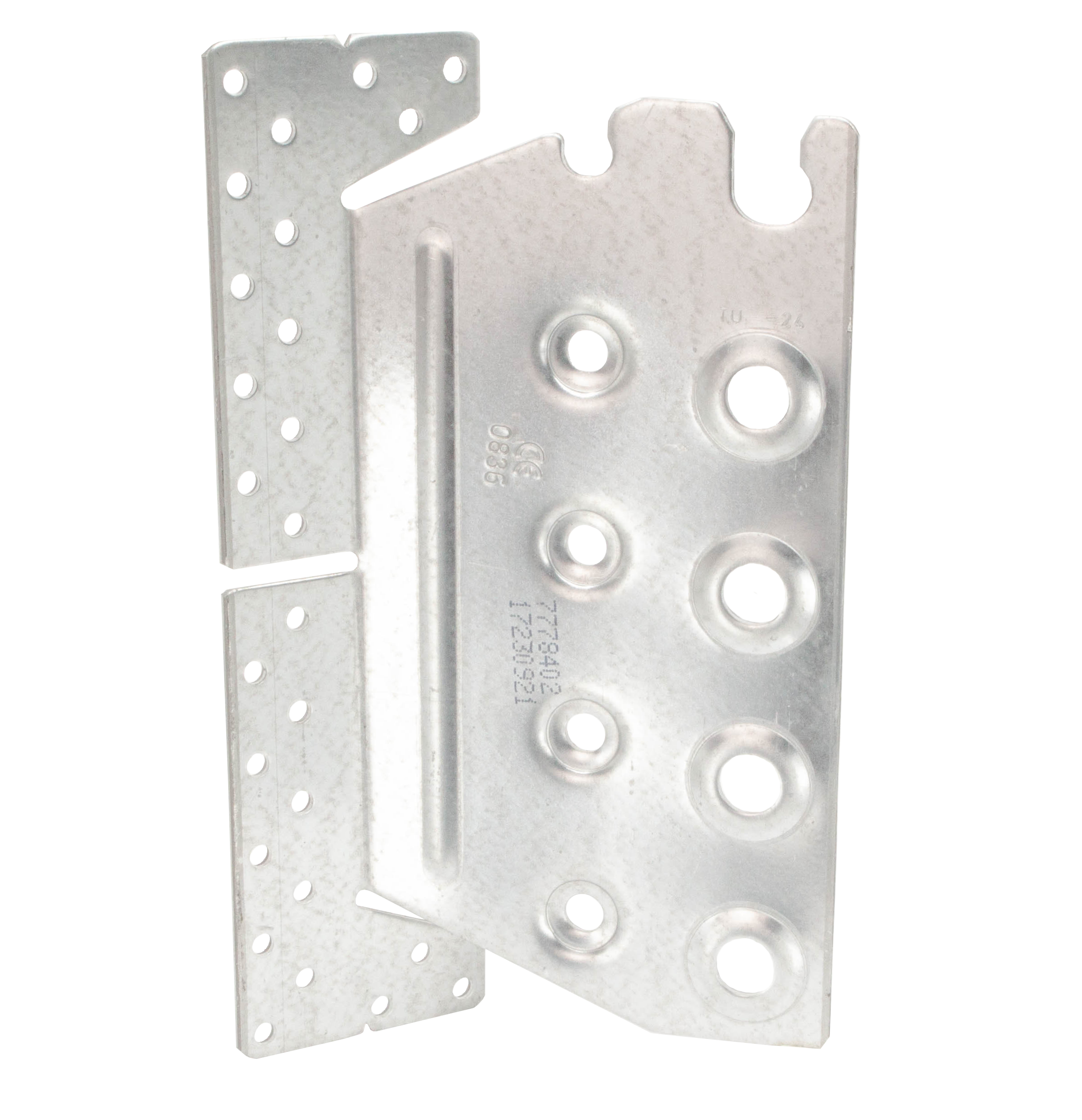

Concealed Beam Hanger for Skew option
These concealed hangers ensure a completely invisible assembly. The slot in the head facilitates on-site installation. TUSL or TUSR, factory bent, are suitable for skewed applications.
Tuotteen yksityiskohdat
Ominaisuudet
Materiaali
- Steel S250GD + Z275 according to NF EN 10346.
- Thickness 3 mm
Hyödyt
- Invisible assembly
- Optimized implementation complies with Eurocodes
- Half-hour fire resistance subject to a special installation.
Sovellus
Liitos
- Supporting member: solid wood, glued-laminated wood, composite lumber.
- Supported member: solid wood, glued-laminated wood, composite lumber.
Käyttökohteet
- Joists.
- Purlins.
- Supporting beam.
Tekniset tiedot
Mitat ja ominaisarvot
Tuotenro | Mitat, SB [mm] | Mitat HB [mm] | Mitat ja ominaisarvot [mm] | Reiät HB | Reiät, SB | Box Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Leveys | Korkeus | Pilariin leveys | B | C | A | t | α [°] | Ø5 | Ø8,5 | Ø12,5 | |||||||
Minimi | Min | Maksimi | Min β=0 | Min β≠0 | Maksimi | Minimi | Minimi | Maksimi | |||||||||
TU/S12 | 40 | 60 | 120 | 120 | 160 | 200 | 68 | 96 | 97.5 | 40 | 3 | 30 | 85 | 6 | 4 | - | - |
TU/S16 | 60 | 60 | 160 | 160 | 190 | 240 | 88 | 134 | 104.5 | 60 | 3 | 30 | 85 | 18 | - | 3 | - |
TU/S20 | 60 | 60 | 160 | 200 | 225 | 280 | 88 | 174 | 104.5 | 60 | 3 | 30 | 85 | 22 | - | 4 | - |
TU/S24 | 60 | 60 | 160 | 240 | 260 | 300 | 88 | 214 | 104.5 | 60 | 3 | 30 | 85 | 26 | - | 5 | - |
TU/S28 | 60 | 60 | 160 | 280 | 295 | 340 | 88 | 254 | 104.5 | 60 | 3 | 30 | 85 | 30 | - | 6 | - |

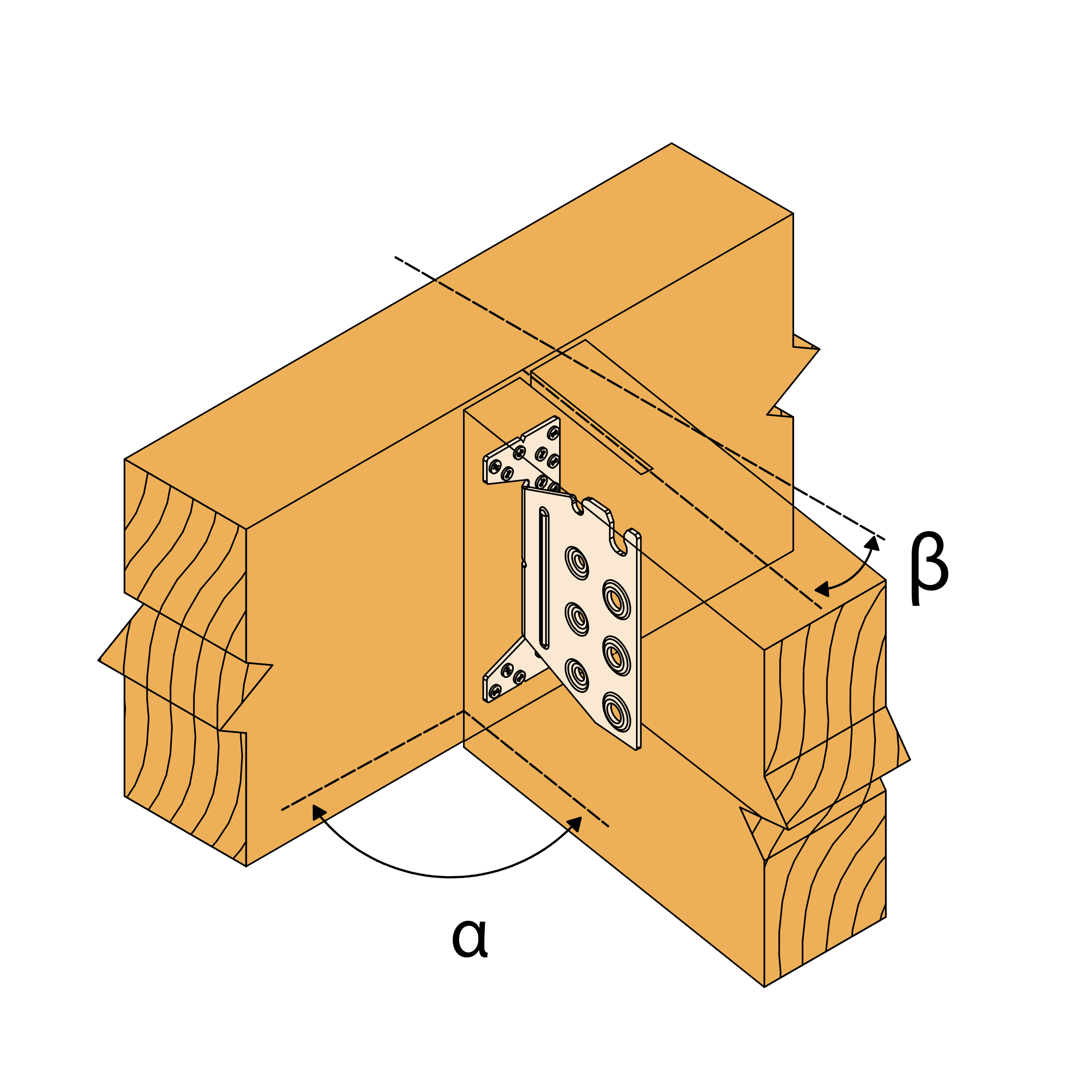

Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=30°
Tuotenro | Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=30° | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | |||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | |||||||||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
TU/S12 | 6 | CNA4,0x50 | 4 | STD8 | 7.4 | 8.1 | 9 | 9.5 | 9.5 | 9.5 | 7.1 | 7.8 | 8.6 | 9.3 | 9.3 | 9.3 | 6.8 | 7.4 | 8.2 | 8.9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.7 | 8.7 |
TU/S16 | 18 | CNA4,0x50 | 3 | STD12 | 16.4 | 16.9 | 17.8 | 18.8 | 20 | 21.3 | 15.9 | 16.3 | 17 | 18 | 19 | 20.2 | 15.5 | 15.8 | 16.4 | 17.2 | 18.1 | 19.1 | 15.1 | 15.5 | 16 | 16.7 | 17.5 | 18.4 |
TU/S20 | 22 | CNA4,0x50 | 4 | STD12 | 24.9 | 25.6 | 26.9 | 28.6 | 30.3 | 32.2 | 24.2 | 24.7 | 25.8 | 27.2 | 28.8 | 30.5 | 23.6 | 24 | 24.9 | 26.1 | 27.5 | 28.9 | 22.9 | 23.6 | 24.3 | 25.4 | 26.6 | 27.9 |
TU/S24 | 26 | CNA4,0x50 | 5 | STD12 | 34.2 | 35.1 | 36.9 | 39.1 | 41.5 | 43.9 | 33.2 | 33.9 | 35.3 | 37.2 | 39.4 | 41.6 | 32.3 | 32.9 | 34.1 | 35.8 | 37.6 | 39.6 | 31.6 | 32.5 | 33.5 | 35 | 36.6 | 38.4 |
TU/S28 | 30 | CNA4,0x50 | 6 | STD12 | 43.9 | 45.1 | 47.3 | 50.1 | 53 | 56 | 42.7 | 43.5 | 45.4 | 47.7 | 50.4 | 53.2 | 41.5 | 42.4 | 44 | 46 | 48.3 | 50.8 | 40.8 | 42 | 43.3 | 45.2 | 47.2 | 49.5 |

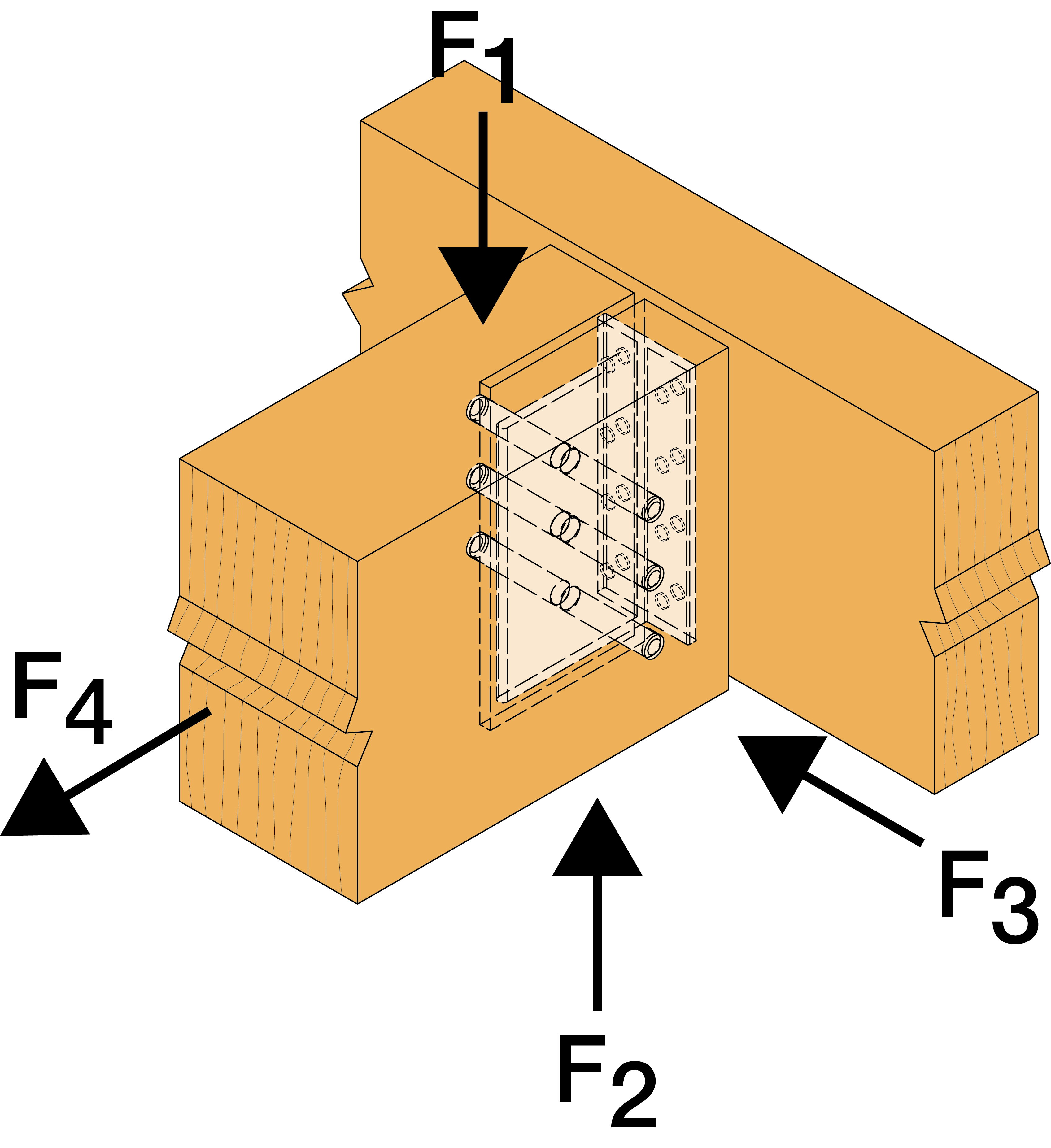

R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.
Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=45°
Tuotenro | Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=45° | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | |||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | |||||||||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
TU/S12 | 6 | CNA4,0x50 | 4 | STD8 | 7.4 | 8.2 | 8.9 | 9.5 | 9.5 | 9.5 | 7.1 | 7.8 | 8.6 | 9.3 | 9.3 | 9.3 | 6.8 | 7.4 | 8.2 | 9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.7 | 8.7 |
TU/S16 | 18 | CNA4,0x50 | 3 | STD12 | 16.3 | 16.9 | 17.9 | 18.9 | 20.2 | 21.4 | 15.9 | 16.3 | 17 | 18 | 19.1 | 20.2 | 15.4 | 15.7 | 16.3 | 17.2 | 18.1 | 19.1 | 15 | 15.4 | 15.9 | 16.6 | 17.5 | 18.4 |
TU/S20 | 22 | CNA4,0x50 | 4 | STD12 | 24.9 | 25.6 | 27.2 | 28.7 | 30.5 | 32.3 | 24.1 | 24.7 | 25.8 | 27.3 | 28.9 | 30.6 | 23.5 | 23.9 | 24.9 | 26.1 | 27.5 | 29 | 22.9 | 23.5 | 24.3 | 25.4 | 26.7 | 28 |
TU/S24 | 26 | CNA4,0x50 | 5 | STD12 | 34.2 | 35.2 | 37.2 | 39.2 | 41.7 | 44.1 | 33.2 | 33.9 | 35.4 | 37.4 | 39.5 | 41.8 | 32.3 | 32.9 | 34.2 | 35.9 | 37.8 | 39.8 | 31.5 | 32.5 | 33.6 | 35 | 36.8 | 38.6 |
TU/S28 | 30 | CNA4,0x50 | 6 | STD12 | 44 | 45.2 | 47.8 | 50.3 | 53.2 | 56.1 | 42.7 | 43.6 | 45.5 | 47.9 | 50.6 | 53.4 | 41.5 | 42.5 | 44.1 | 46.2 | 48.5 | 51 | 40.8 | 42 | 43.4 | 45.3 | 47.4 | 49.7 |
R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.
Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=60°
Tuotenro | Product characteristic capacities - Timber beam to timber beam - full nailing - with slope and skew α=60° | ||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | ||||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | ||||||||||||||||||||||||
Määrä | Tyyppi | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | ||||||
TU/S12 | 6 | CNA4,0x50 | CSA5,0x40 | 4 | STD8 | 7.4 | 8.2 | 9.1 | 9.6 | 9.6 | 9.6 | 7.2 | 7.9 | 8.7 | 9.3 | 9.3 | 9.3 | 6.9 | 7.5 | 8.2 | 9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.8 | 8.8 |
TU/S16 | 18 | CNA4,0x50 | CSA5,0x40 | 3 | STD12 | 16.4 | 16.9 | 17.8 | 19 | 20.2 | 21.5 | 15.9 | 16.3 | 17.1 | 18.1 | 19.2 | 20.4 | 15.4 | 15.7 | 16.4 | 17.2 | 18.2 | 19.3 | 15 | 15.4 | 15.9 | 16.7 | 17.5 | 18.5 |
TU/S20 | 22 | CNA4,0x50 | CSA5,0x40 | 4 | STD12 | 25 | 25.8 | 27.2 | 28.9 | 30.7 | 32.6 | 24.2 | 24.8 | 25.9 | 27.4 | 29.1 | 30.9 | 23.6 | 24 | 25 | 26.2 | 27.7 | 29.3 | 22.9 | 23.5 | 24.4 | 25.5 | 26.8 | 28.2 |
TU/S24 | 26 | CNA4,0x50 | CSA5,0x40 | 5 | STD12 | 34.4 | 35.4 | 37.3 | 39.5 | 42 | 44.4 | 33.3 | 34.1 | 35.6 | 37.6 | 39.8 | 42.1 | 32.4 | 33.1 | 34.4 | 36.1 | 38 | 40.1 | 31.6 | 32.6 | 33.7 | 35.2 | 37 | 38.9 |
TU/S28 | 30 | CNA4,0x50 | CSA5,0x40 | 6 | STD12 | 44.3 | 45.5 | 47.8 | 50.6 | 53.6 | 56.4 | 43 | 43.8 | 45.8 | 48.2 | 51 | 53.7 | 41.7 | 42.7 | 44.3 | 46.5 | 48.9 | 51.4 | 40.9 | 42.2 | 43.7 | 45.6 | 47.8 | 50.1 |
R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.

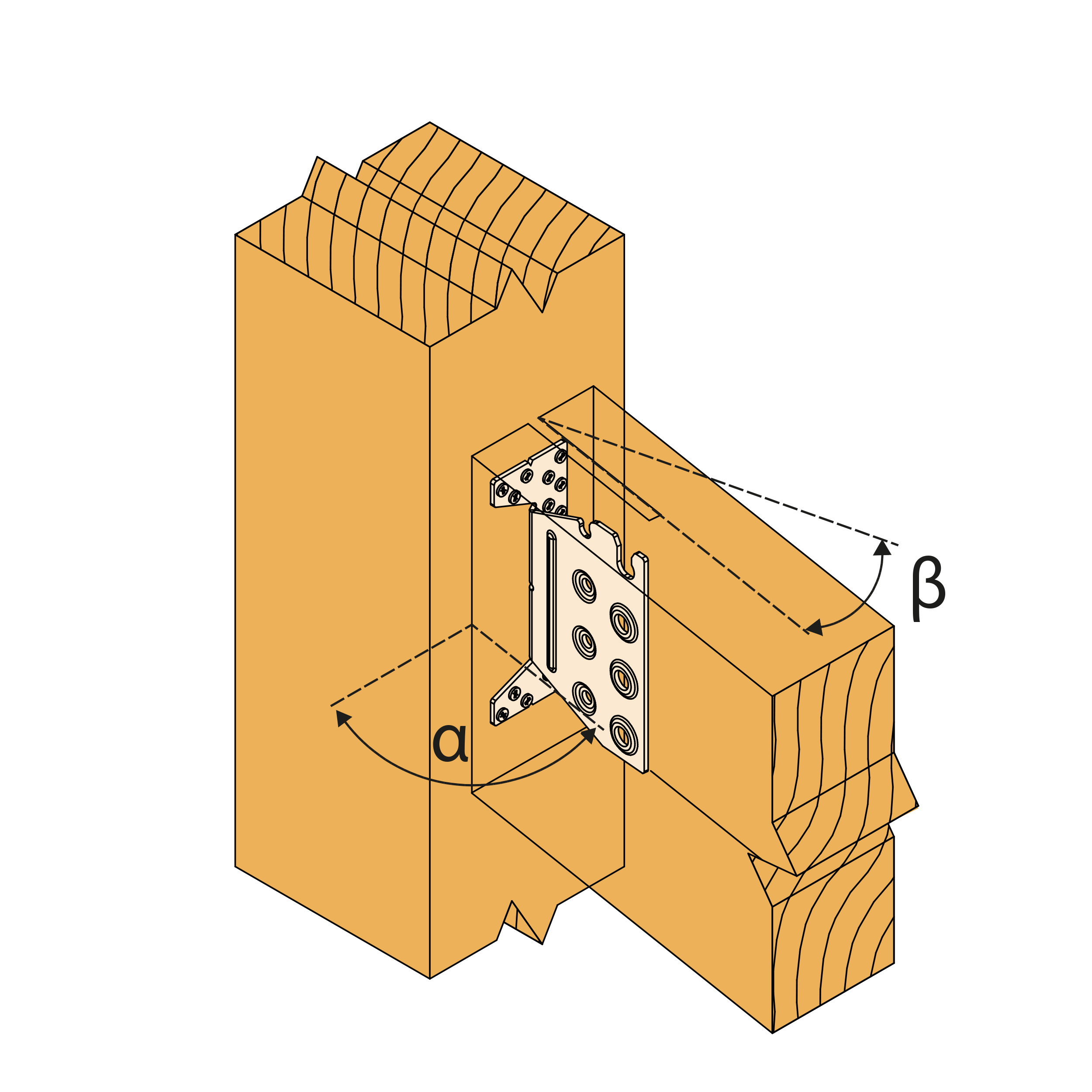

Product characteristic capacities - Timber beam to timber post - partial nailing - with slope and skew α=30°
Tuotenro | Product characteristic capacities - Timber beam to timber post - full nailing - with slope and skew α=30° | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | |||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | |||||||||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
TU/S12 | 5 | CNA4,0x50 | 4 | STD8 | 7.4 | 8.1 | 9 | 9.5 | 9.5 | 9.5 | 7.1 | 7.8 | 8.6 | 9.3 | 9.3 | 9.3 | 6.8 | 7.4 | 8.2 | 8.9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.7 | 8.7 |
TU/S16 | 13 | CNA4,0x50 | 3 | STD12 | 15 | 15.5 | 16.3 | 17.3 | 18.5 | 19.6 | 14.5 | 14.9 | 15.6 | 16.5 | 17.6 | 18.6 | 14.1 | 14.4 | 15 | 15.8 | 16.7 | 17.6 | 13.8 | 14.1 | 14.6 | 15.2 | 16 | 16.9 |
TU/S20 | 14 | CNA4,0x50 | 4 | STD12 | 21.2 | 21.9 | 23 | 24.4 | 25.8 | 26.1 | 20.6 | 21.1 | 22.1 | 23.3 | 24.6 | 26 | 20.1 | 20.4 | 21.3 | 22.3 | 23.5 | 24.7 | 19.5 | 20 | 20.7 | 21.6 | 22.7 | 23.8 |
TU/S24 | 17 | CNA4,0x50 | 5 | STD12 | 29.4 | 30.3 | 31.9 | 33.6 | 34.4 | 34.4 | 28.6 | 29.2 | 30.6 | 32.2 | 33.9 | 34.4 | 27.8 | 28.3 | 29.4 | 30.8 | 32.4 | 34 | 27 | 27.8 | 28.7 | 30 | 31.4 | 32.9 |
TU/S28 | 18 | CNA4,0x50 | 6 | STD12 | 35.2 | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 | 34.3 | 35 | 36.1 | 36.1 | 36.1 | 36.1 | 33.5 | 34 | 35.2 | 36.1 | 36.1 | 36.1 | 32.7 | 33.4 | 34.4 | 35.7 | 36.1 | 36.1 |
R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.
Product characteristic capacities - Timber beam to timber post - partial nailing - with slope and skew α=45°
Tuotenro | Product characteristic capacities - Timber beam to timber post - full nailing - with slope and skew α=45° | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | |||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | |||||||||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
TU/S12 | 5 | CNA4,0x50 | 4 | STD8 | 7.4 | 8.2 | 9 | 9.5 | 9.5 | 9.5 | 7.1 | 7.8 | 8.6 | 9.3 | 9.3 | 9.3 | 6.8 | 7.4 | 8.2 | 9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.7 | 8.7 |
TU/S16 | 13 | CNA4,0x50 | 3 | STD12 | 15 | 15.5 | 16.3 | 17.4 | 18.5 | 19.7 | 14.5 | 14.9 | 15.6 | 16.6 | 17.6 | 18.7 | 14.1 | 14.4 | 15 | 15.8 | 16.7 | 17.7 | 13.7 | 14 | 14.5 | 15.2 | 16 | 16.9 |
TU/S20 | 14 | CNA4,0x50 | 4 | STD12 | 21.3 | 22 | 23.1 | 24.5 | 25.8 | 26.1 | 20.6 | 21.2 | 22.2 | 23.4 | 24.7 | 26 | 20.1 | 20.4 | 21.3 | 22.4 | 23.6 | 24.8 | 19.5 | 20 | 20.7 | 21.7 | 22.7 | 23.9 |
TU/S24 | 17 | CNA4,0x50 | 5 | STD12 | 29.5 | 30.4 | 32 | 33.7 | 34.4 | 34.4 | 28.7 | 29.3 | 30.7 | 32.3 | 34 | 34.4 | 27.9 | 28.4 | 29.5 | 31 | 32.5 | 34.1 | 27.1 | 27.8 | 28.8 | 30.1 | 31.5 | 33 |
TU/S28 | 18 | CNA4,0x50 | 6 | STD12 | 35.3 | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 | 34.4 | 35.1 | 36.1 | 36.1 | 36.1 | 36.1 | 33.6 | 34.1 | 35.2 | 36.1 | 36.1 | 36.1 | 32.8 | 33.5 | 34.5 | 35.8 | 36.1 | 36.1 |
R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.
Product characteristic capacities - Timber beam to timber post - partial nailing - with slope and skew α=60°
Tuotenro | Product characteristic capacities - Timber beam to timber post - full nailing - with slope and skew α=60° | |||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Kestävyyden ominaisarvot [kN] | |||||||||||||||||||||||||||
Primääripalkki | SB | R1,k - Slope β=0° | R1,k - Slope β=15° | R1,k - Slope β=30° | R1,k - Slope β=45° | |||||||||||||||||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||||||||||||||||
60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
TU/S12 | 5 | CNA4,0x50 | 4 | STD8 | 7.4 | 8.2 | 9.1 | 9.6 | 9.6 | 9.6 | 7.2 | 7.9 | 8.7 | 9.3 | 9.3 | 9.3 | 6.9 | 7.5 | 8.2 | 9 | 9 | 9 | 6.6 | 7.1 | 7.8 | 8.5 | 8.8 | 8.8 |
TU/S16 | 13 | CNA4,0x50 | 3 | STD12 | 15 | 15.5 | 16.4 | 17.5 | 18.7 | 19.9 | 14.5 | 14.9 | 15.7 | 16.7 | 17.7 | 18.9 | 14.1 | 14.4 | 15 | 15.8 | 16.8 | 17.8 | 13.7 | 14 | 14.5 | 15.3 | 16.1 | 17 |
TU/S20 | 14 | CNA4,0x50 | 4 | STD12 | 21.4 | 22.1 | 23.3 | 24.6 | 25.8 | 26.1 | 20.7 | 21.3 | 22.3 | 23.5 | 24.8 | 26 | 20.1 | 20.5 | 21.4 | 22.5 | 23.7 | 24.9 | 19.5 | 20 | 20.8 | 21.8 | 22.9 | 24 |
TU/S24 | 17 | CNA4,0x50 | 5 | STD12 | 29.7 | 30.6 | 32.2 | 33.8 | 34.4 | 34.4 | 28.8 | 29.5 | 30.9 | 32.5 | 34 | 34.4 | 28.1 | 28.6 | 29.7 | 31.2 | 32.7 | 34.1 | 27.2 | 28 | 29 | 30.3 | 31.7 | 33.1 |
TU/S28 | 18 | CNA4,0x50 | 6 | STD12 | 35.4 | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 | 34.6 | 35.2 | 36.1 | 36.1 | 36.1 | 36.1 | 33.8 | 34.3 | 35.4 | 36.1 | 36.1 | 36.1 | 32.9 | 33.7 | 34.7 | 35.8 | 36.1 | 36.1 |
R2,k capacities can be calculated as R2,k = R1,k x (nb of dowels - 1) / (nb of dowels).
The top dowel is not considered for the uplift capacities as it is placed in an open hole.
Product characteristic capacities - Safe working loads - skewed connection
Tuotenro | Safe working loads - skewed connection | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Liitoskiinnikkeet | Installation: skew = 0° to 60°, slope = 0° | Installation: skew = 0° to 60°, slope = 45° | ||||||||||
Primääripalkki | SB | R1.SWL [kN] | R1.SWL [kN] | |||||||||
Määrä | Tyyppi | Määrä | Tyyppi | Puutavaran leveys = teräsvaarnan pituus [mm] | Puutavaran leveys = teräsvaarnan pituus [mm] | |||||||
60 | 80 | 100 | 120 | 60 | 80 | 100 | 120 | |||||
TU/S12 | 6 | CSA5,0x40 | 4 | STD8 | 2.5 | 2.5 | 2.5 | - | 2.3 | 2.5 | 2.5 | - |
TU/S16 | 18 | CSA5,0x40 | 3 | STD12 | 3.4 | 4.8 | 6.1 | 6.1 | 3 | 4.1 | 5.3 | 5.3 |
TU/S20 | 22 | CSA5,0x40 | 4 | STD12 | 5.5 | 7.7 | 9.8 | 9.8 | 4.8 | 6.7 | 8.5 | 8.5 |
TU/S24 | 26 | CSA5,0x40 | 5 | STD12 | 8 | 11.1 | 13.3 | 13.3 | 6.9 | 9.6 | 12.3 | 12.3 |
TU/S28 | 30 | CSA5,0x40 | 6 | STD12 | 10.7 | 14.9 | 16.3 | 16.3 | 9.3 | 12.9 | 16.3 | 16.3 |
The skew may be precise when ordering the products
Asennus
Asennus

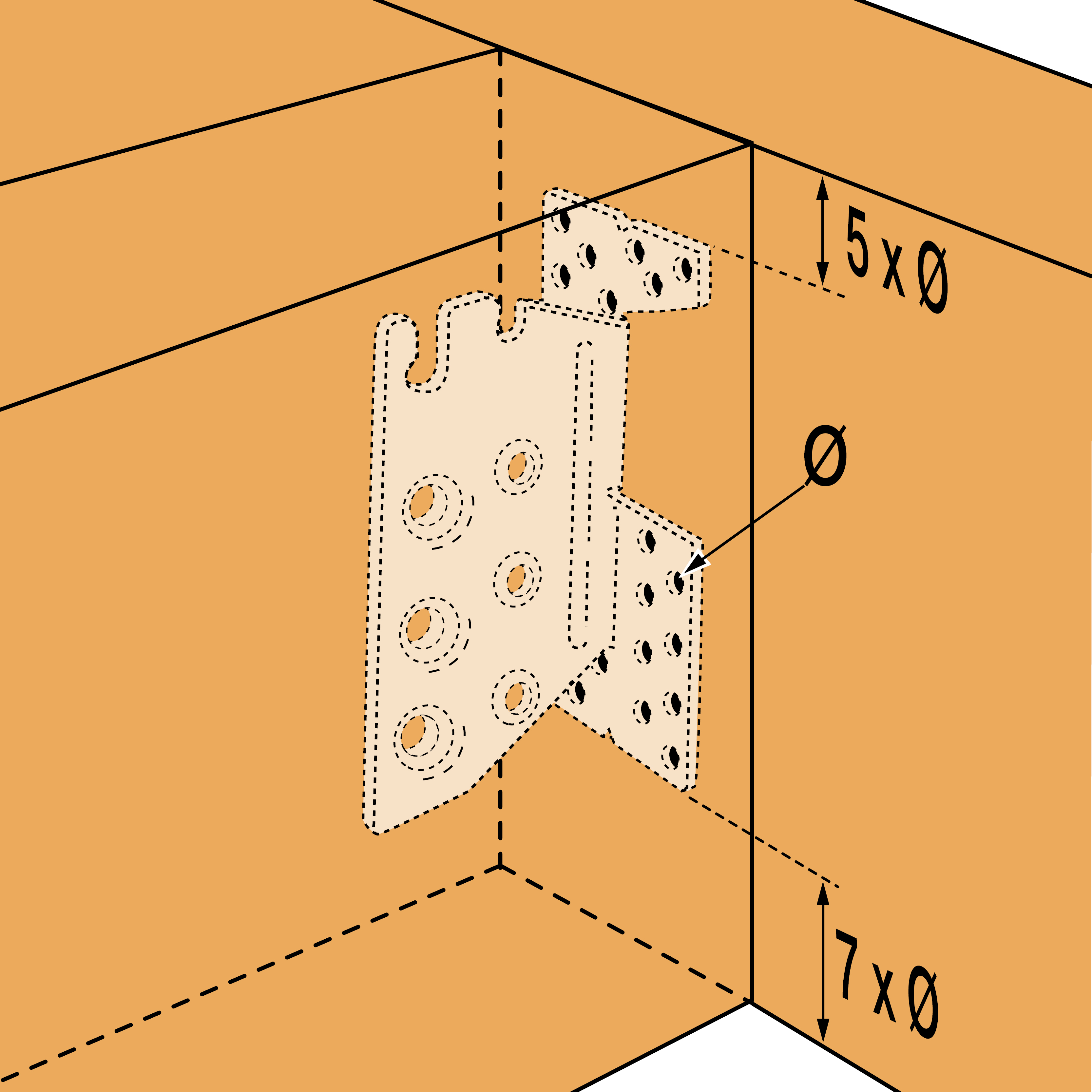

Kiinnittäminen
On supporting wood member: TUS
- CNA annular ring-shank nails dia. 4.0 x 50 mm or CSA screws dia. 5.0 x 40 mm
On supported member: Steel dowel S235JR type STD12
- TUS12: dia. 8 mm type STD 8.
- TUS16 to 28: dia. 12 mm type STD 12.
The length of the dowels is less than or equal to the width of the supported joist.
TUS: wood/wood fastening only with nails/screws.

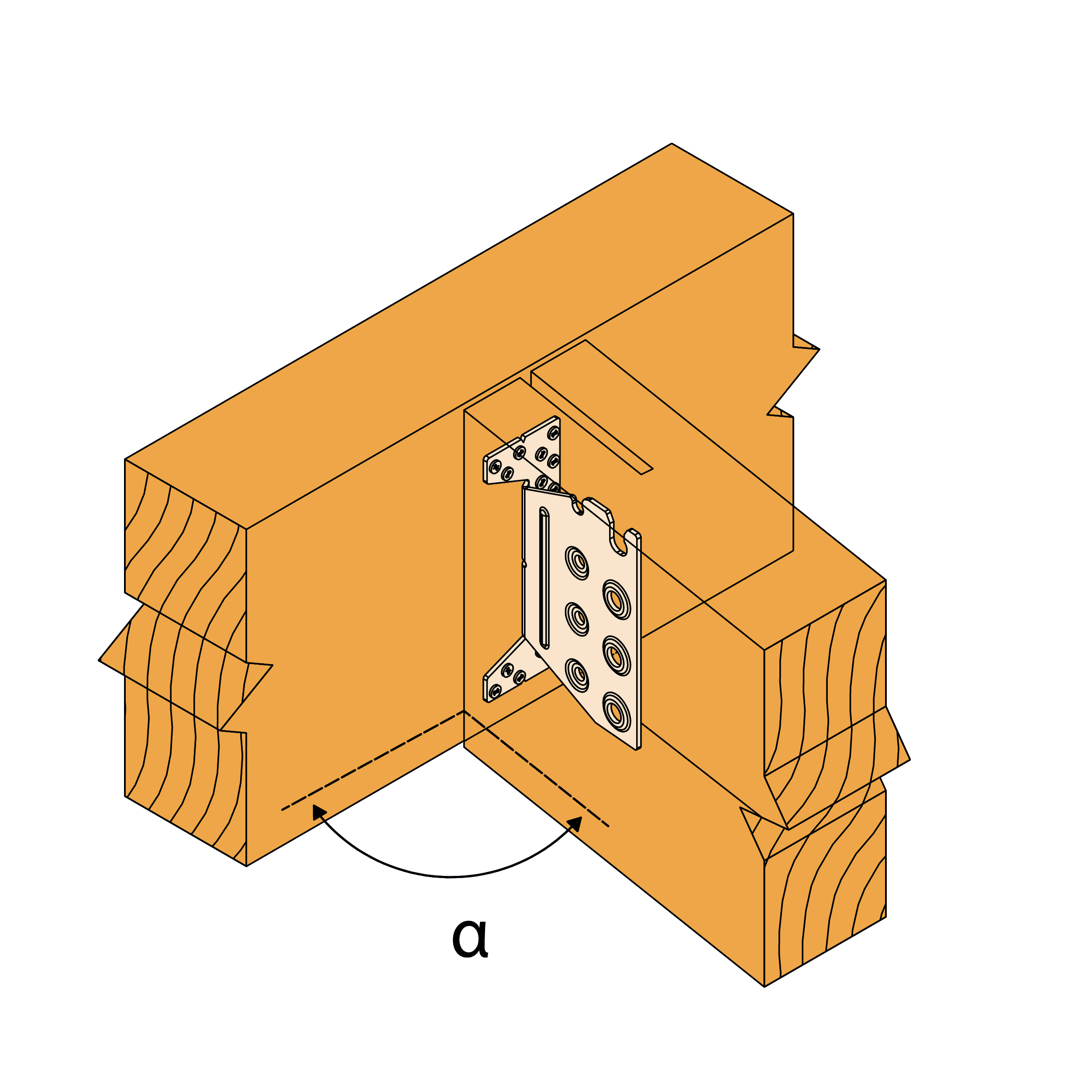

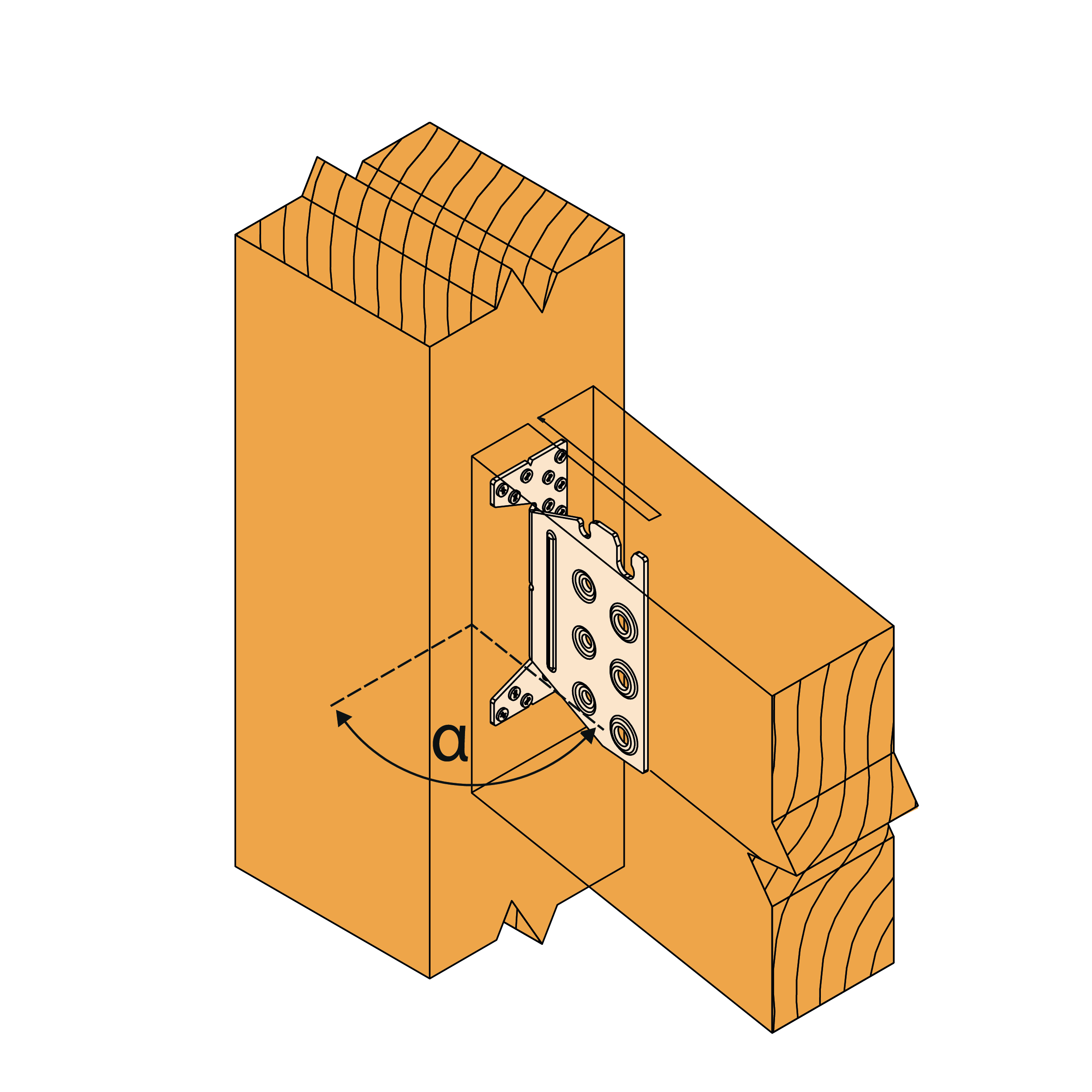

Kiinnittäminen
- Do a vertical cut in the joist (6 mm width for TUS12 and 9 mm width for TUS16 to TUS28),
- Identifiy the position of dowels on the joist before to drill transversaly,
- Insert only the top dowel in the joist (drilling diameter depending on dowel diameter),
- Do a 6 mm depth milling in the header. This milling is not compulsory but allow to improve the assembly esthetic,
- Fix the hanger on the header using nails or screws,
- Present the joist in order to place the top dowel, already inserted in the joist, at the top of hanger
- install the remaining dowels.
